Air Quality CO2 Sensor - LoRaWAN® Version
Comprehensive Indoor Monitoring with 3-in-1 CO2, Temperature, and Humidity Sensor
Compliance to LoRaWAN® 1.0.3
Measurement range: 400 ppm –10000 ppm
Accuracy: ±(30 ppm + 3%)
Press-and-play installation
IP40 equivalent
Integrated best-in-class 3-in-1 CO2 sensor with temperature and humidity sensor
Easy operation: Simply wave in front of the device to receive a color-coded visual indicator of the overall air quality: Green (Good), Yellow (Fair), Red (Poor)

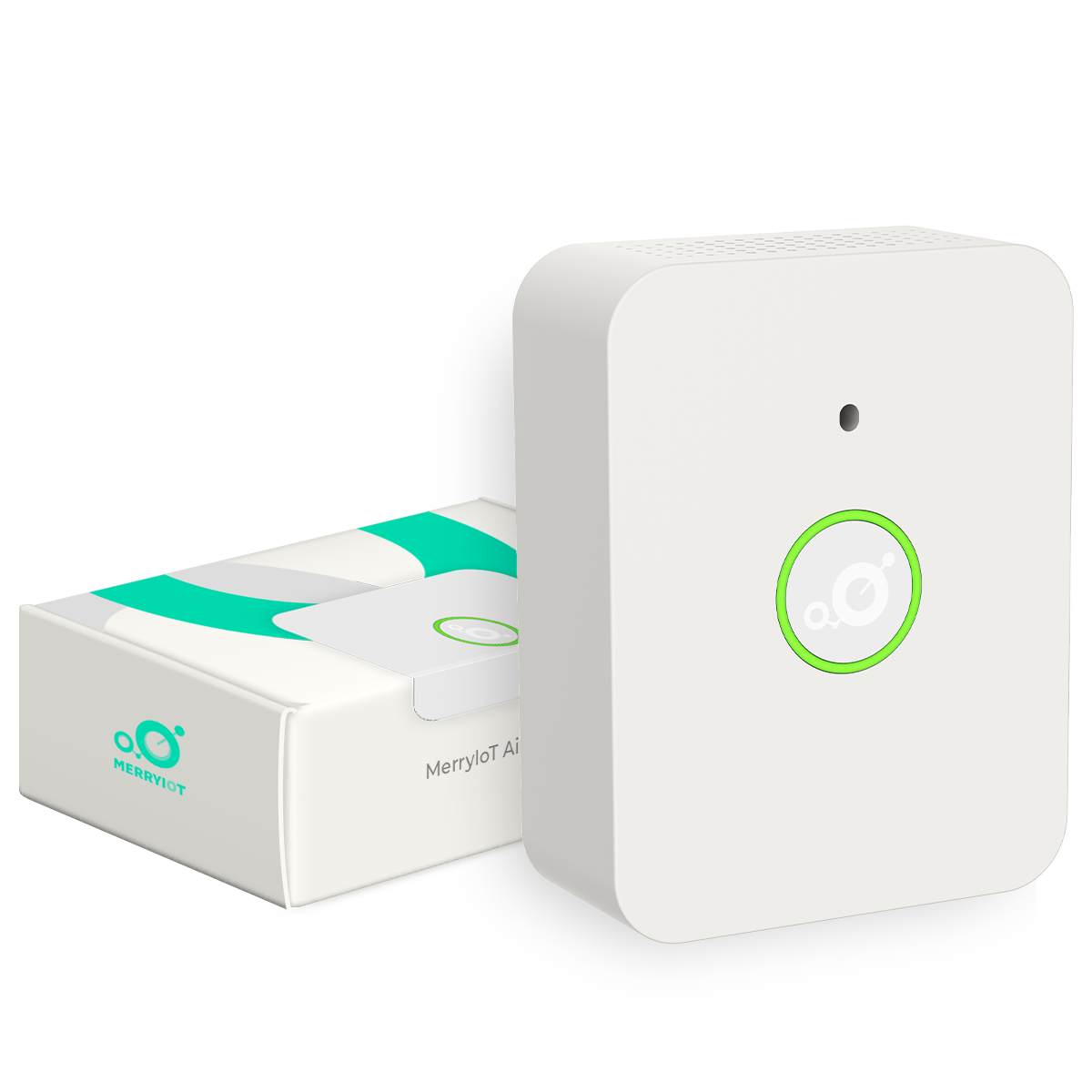

Air Quality CO2 Sensor - LoRaWAN® Version
Introducing the Air Quality CO2 Sensor - LoRaWAN® Version, a vital tool for maintaining a healthy indoor environment. This best-in-class integrated 3-in-1 sensor measures CO2 levels, temperature, and humidity, ensuring you stay informed about your air quality. Featuring LoRaWAN® connectivity, the sensor provides real-time data and alerts for optimal living conditions. MerryIoT, a brand under Browan, specializes in smart home applications, enhancing your life with innovative IoT solutions. Experience the future of smart living with MerryIoT's reliable technologies.
Note: LoRaWAN® and Amazon Sidewalk connectivity are available in different SKUs. Please consult with us before making your purchase to ensure you select the right option for your needs.
Features
Best-in-class integrated 3-in-1 CO2 sensor
Easily managed app
24/7 Monitoring
Best-in-class Smart Home Application
Elevate every breath with MerryIoT
3-in-1 integrated CO2 sensor: CO2, temperature, and humidity
Maintaining proper CO2 levels is essential for good sleep, decision-making, and productivity. Indoor air can be up to 7 times more polluted than outdoor air. MerryIoT Air Quality CO2 monitors real-time CO2 levels, temperature, and humidity, supporting well-being and optimal performance.
Visual representation of air quality

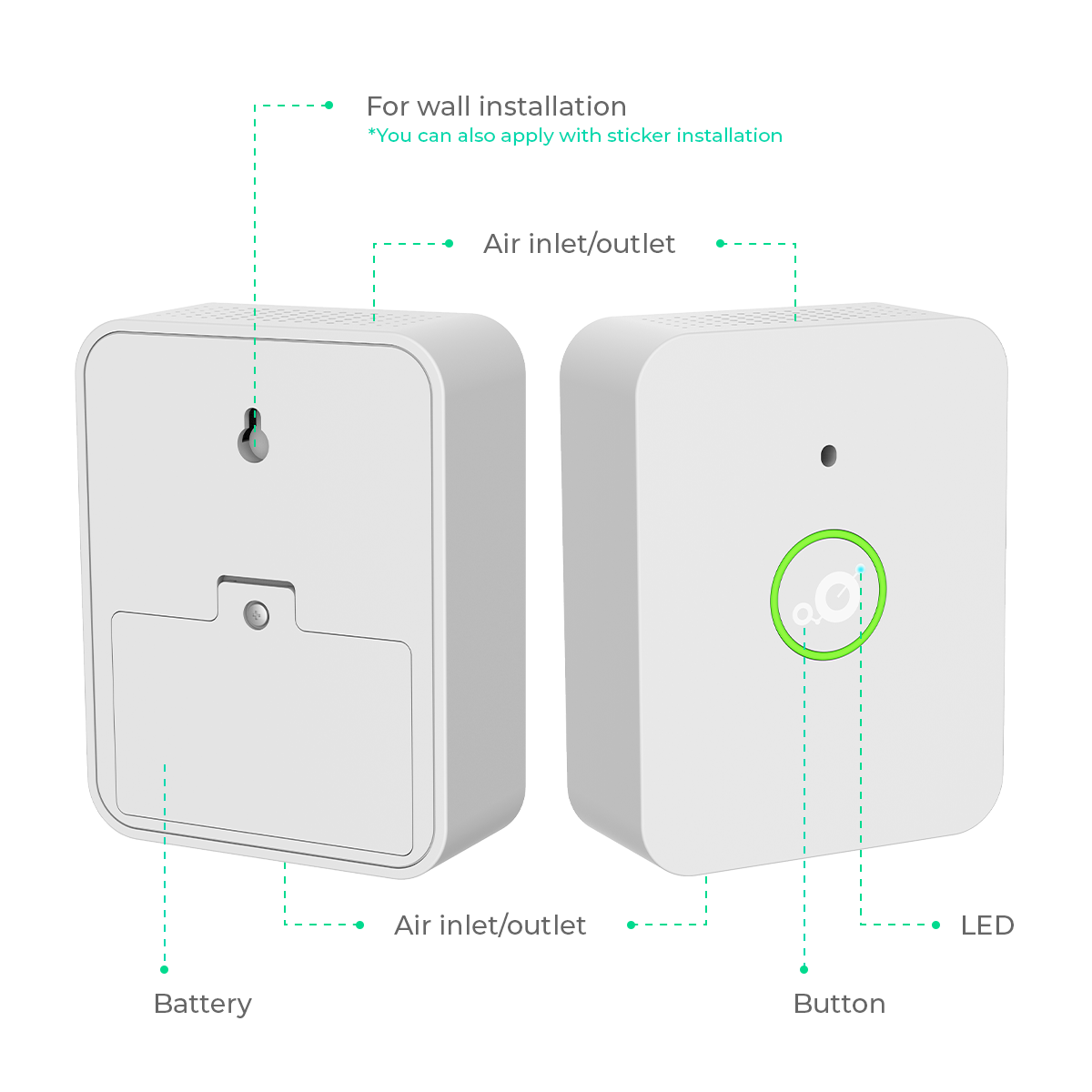

Non-contact air quality indication by LED colors (red/yellow/green)
MerryIoT Air Quality CO2 has a proximity detector that triggers the LED indicator with a hand wave, enhancing interaction and conserving power. The LED shows air quality, and a buzzer alerts if CO2 exceeds safe levels. Keep indoor CO2 near 400 ppm, below 800 ppm.
| Details | |
|---|---|
| Model Name | CD10 |
| Frequency | EU 863~870 MHz US 902~928 MHz |
| Protocol | LoRaWAN® 1.0.3 |
| Antenna Gain | -2dBi Peak |
| Receive Sensitivity | -135dBm |
| Operation Temperature | 0 to 50°C |
| Environmental Rating | IP40 equivalent |
| Power Type | AA Li-SOCl2 Battery x 2, 3.6V, 4400mAh |
| Battery Lifetime* | Up to 2 years |
| Average Current | 160 mA maximum/ 20 mA minimum |
| Dimension | L:90 x D:30 x W:70mm |
| Weight | 160 g |
| Sensor | (1) Innovated CO2 sensor: Measurement range: 400 ppm –10000 ppm Accuracy: ±(30 ppm + 3%) (2) Temperature sensor: Measurement range: -40°C –70°C Accuracy: ±(0.4°C) (3) Humidity sensor: Measurement range: 0 %RH –100 %RH Accuracy: ±3 %RH |
| Type Approval | CE/FCC/IC |
| Remark | Battery life may vary based on uplink frequency and operating temperature. |
