Air Quality CO2 Sensor - Sidewalk Version
Advanced CO2 Detection with Amazon Sidewalk Connectivity
Works with Amazon Sidewalk
Measurement range: 400 ppm –10000 ppm
Accuracy: ±(30 ppm + 3%)
Press-and-play installation
IP40 equivalent
Integrated best-in-class 3-in-1 CO2 sensor with temperature and humidity sensor
Easy operation: Simply wave in front of the device to receive a color-coded visual indicator of the overall air quality: Green (Good), Yellow (Fair), Red (Poor)
123456
Air Quality CO2 Sensor - Amazon Sidewalk Version

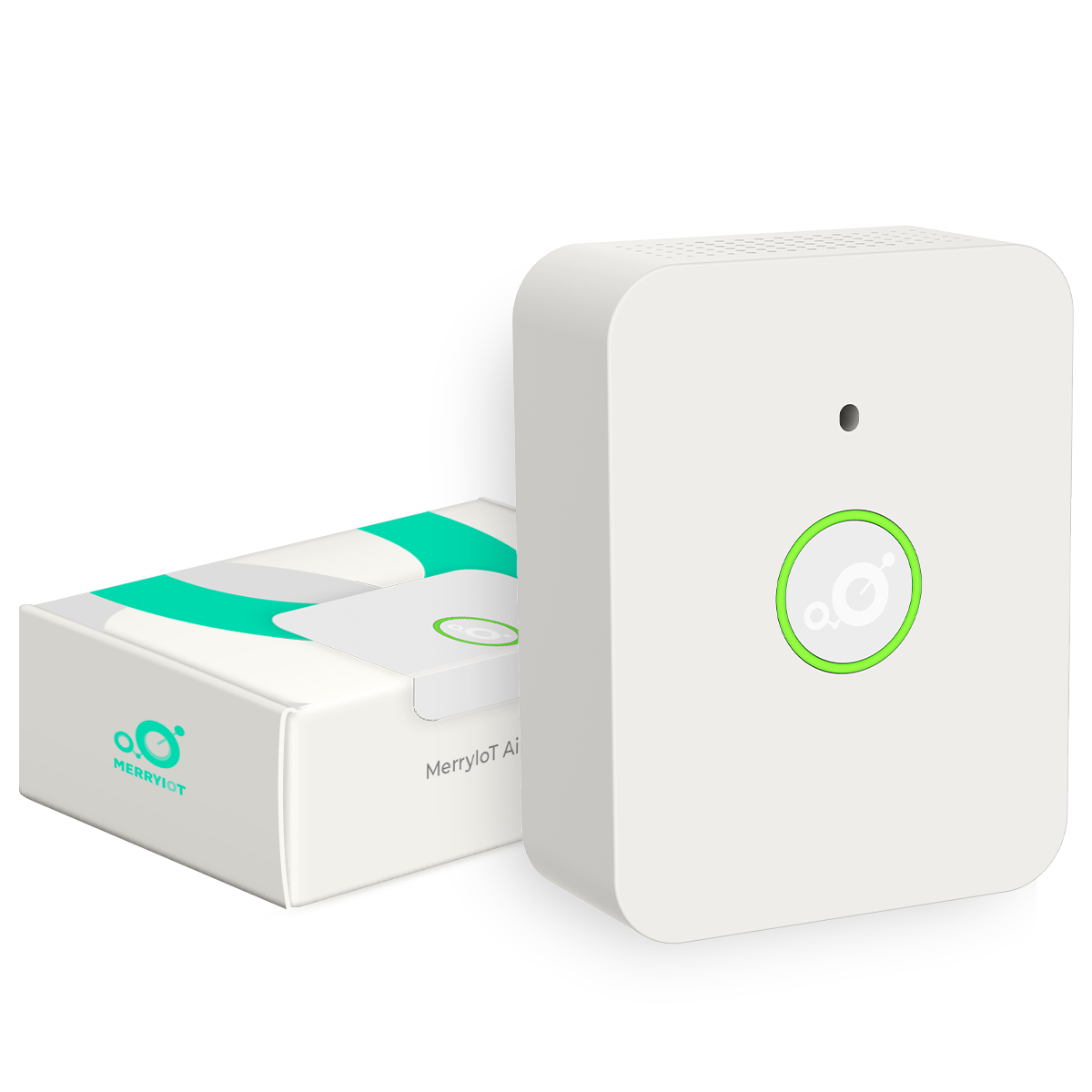

Introducing the MerryIoT Air Quality CO2 Sensor, a vital tool for maintaining a healthy indoor environment. This best-in-class integrated 3-in-1 sensor measures CO2 levels, temperature, and humidity, ensuring you stay informed about your air quality. Featuring LoRaWAN® connectivity and compatibility with Amazon Sidewalk*, the sensor provides real-time data and alerts for optimal living conditions. MerryIoT, a brand under Browan, specializes in smart home applications, enhancing your life with innovative IoT solutions. Experience the future of smart living with MerryIoT's reliable technologies.
Note: LoRaWAN® and Amazon Sidewalk connectivity are available in different SKUs. Please consult with us before making your purchase to ensure you select the right option for your needs.
123456
Features
Best-in-class integrated 3-in-1 CO2 sensor
Easily managed app
24/7 Monitoring
Best-in-class Smart Home Application
Elevate every breath with MerryIoT
3-in-1 integrated CO2 sensor: CO2, temperature, and humidity
Maintaining proper CO2 levels is essential for good sleep, decision-making, and productivity. Indoor air can be up to 7 times more polluted than outdoor air. MerryIoT Air Quality CO2 monitors real-time CO2 levels, temperature, and humidity, supporting well-being and optimal performance.
Visual representation of air quality

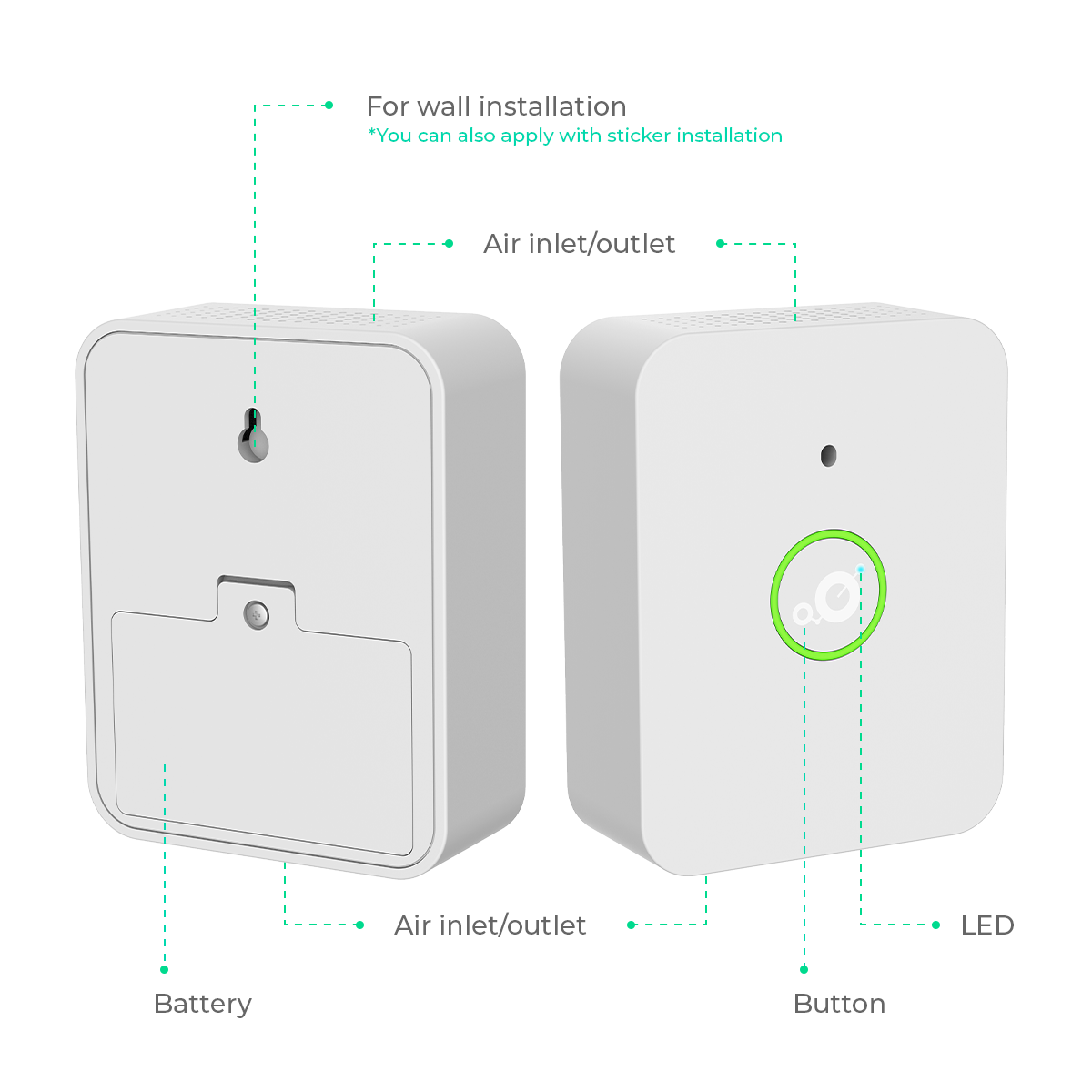

Non-contact air quality indication by LED colors (red/yellow/green)
MerryIoT Air Quality CO2 has a proximity detector that triggers the LED indicator with a hand wave, enhancing interaction and conserving power. The LED shows air quality, and a buzzer alerts if CO2 exceeds safe levels. Keep indoor CO2 near 400 ppm, below 800 ppm.
What is Amazon Sidewalk
Amazon Sidewalk is a shared network that helps devices work better. You can use Amazon Sidewalk to simplify device setup, find lost items, and more. Amazon Sidewalk is optional and can be turned off at any time. It comes at no additional cost and has a capped data usage of 500 MB per month, per account.
Sidewalk Coverage
Please make sure you have Amazon Sidewalk coverage before installing the sensors!
To check the Amazon Sidewalk coverage in your neighborhood, please visit:
| Details | |
|---|---|
| Model Name | CD10 |
| Frequency | EU 863~870 MHz US 902~928 MHz |
| Protocol | Amazon Sidewalk |
| Antenna Gain | -2dBi Peak |
| Receive Sensitivity | -135dBm |
| Operation Temperature | 0 to 50°C |
| Environmental Rating | IP40 equivalent |
| Power Type | AA Li-SOCl2 Battery x 2, 3.6V, 4400mAh |
| Battery Lifetime* | Up to 2 years |
| Average Current | 160 mA maximum/ 20 mA minimum |
| Dimension | L:90 x D:30 x W:70mm |
| Weight | 160 g |
| Sensor | (1) Innovated CO2 sensor: Measurement range: 400 ppm –10000 ppm Accuracy: ±(30 ppm + 3%) (2) Temperature sensor: Measurement range: -40°C –70°C Accuracy: ±(0.4°C) (3) Humidity sensor: Measurement range: 0 %RH –100 %RH Accuracy: ±3 %RH |
| Type Approval | CE/FCC/IC |
| Remark | Battery life may vary based on uplink frequency and operating temperature. |
