Edge AI Gateway
Next-Generation 5G & LoRaWAN® Gateway for Seamless IoT Connectivity
5G & LoRaWAN® Hybrid Connectivity – Integrates 5G EPC software with LoRaWAN® 1.0.3 compliance, supporting 8 concurrent LoRa channels for seamless IoT deployments.
High-Performance Edge Computing – Powered by an Intel Atom® x7-E3950 processor, 4GB DDR3 RAM, and 64GB SSD storage, ensuring fast and efficient data processing.
Versatile Industrial Connectivity – Equipped with 4 Gigabit Ethernet ports, 1 RS-232 serial port, 2 USB 3.0 ports, and HDMI/DP output for flexible system integration.
Rugged & Reliable Design – Built with metal aluminum housing, operates in extreme conditions (-20°C to 60°C), and supports wide power input (9–36V DC) for industrial use.
Smart Remote Management – Supports over-the-air (OTA) and USB firmware upgrades, with Listen Before Talk (LBT) and background scanning for optimized wireless performance.
Edge AI Gateway
The Edge AI Gateway combines 5G connectivity with LoRaWAN® technology, enabling seamless IoT deployments for industrial automation, smart cities, and remote monitoring. It ensures long-range, interference-free communication by supporting 8 concurrent LoRa channels, 27 dBm transmission power, and Listen Before Talk (LBT).
Powered by an Intel Atom x7-E3950 processor, 4GB DDR3 RAM, and 64GB SSD, it runs Ubuntu 20.04 with TPM 2.0 security. It offers versatile industrial connectivity with four Gigabit Ethernet ports, RS-232, USB 3.0, and HDMI/DP.
Designed for harsh environments, it features rugged metal housing, 9–36V DC input, and operates between -20°C to 60°C. With OTA and USB firmware updates, the Edge AI Gateway is a powerful, scalable, and future-ready IoT solution.
LoRaWAN® is a mark used under license from the LoRa Alliance®.
| Details | |
|---|---|
| Model Name | L0009 |
| Processor | Intel Atom® x7-E3950 Processor, 2M Cache, up to 2.00 GHz |
| Flash Memory | 4GB DDR3 |
| OS | Ubuntu 20.04 |
| Frequency | Follow LoRaWAN® Regional Parameters: • US 902~928 MHz |
| Number of Channels | 8 concurrent channels |
| Protocol | LoRaWAN v1.0.3 |
| Modulation | LoRaWAN v1.0.3 |
| RF Transceiver | SX1302 with SX1250 (additional SX1262 for LBT and background scan) |
| Transmit RF Power | 0.5W (up to 27 dBm) |
| Receive Sensitivity | Down to -142 dBm |
| Operation Temperature | -20 to 60°C (with SSD or mSATA-mini) |
| Storage Temperature | -20 to 85°C |
| Operating humidity | 5 to 95% RH (non-condensing) |
| Material | Metal Aluminum |
| Power Type | DC Jack with wide range 9~36V |
| Dimension | 180 mm x 33 mm x 127.8 mm |

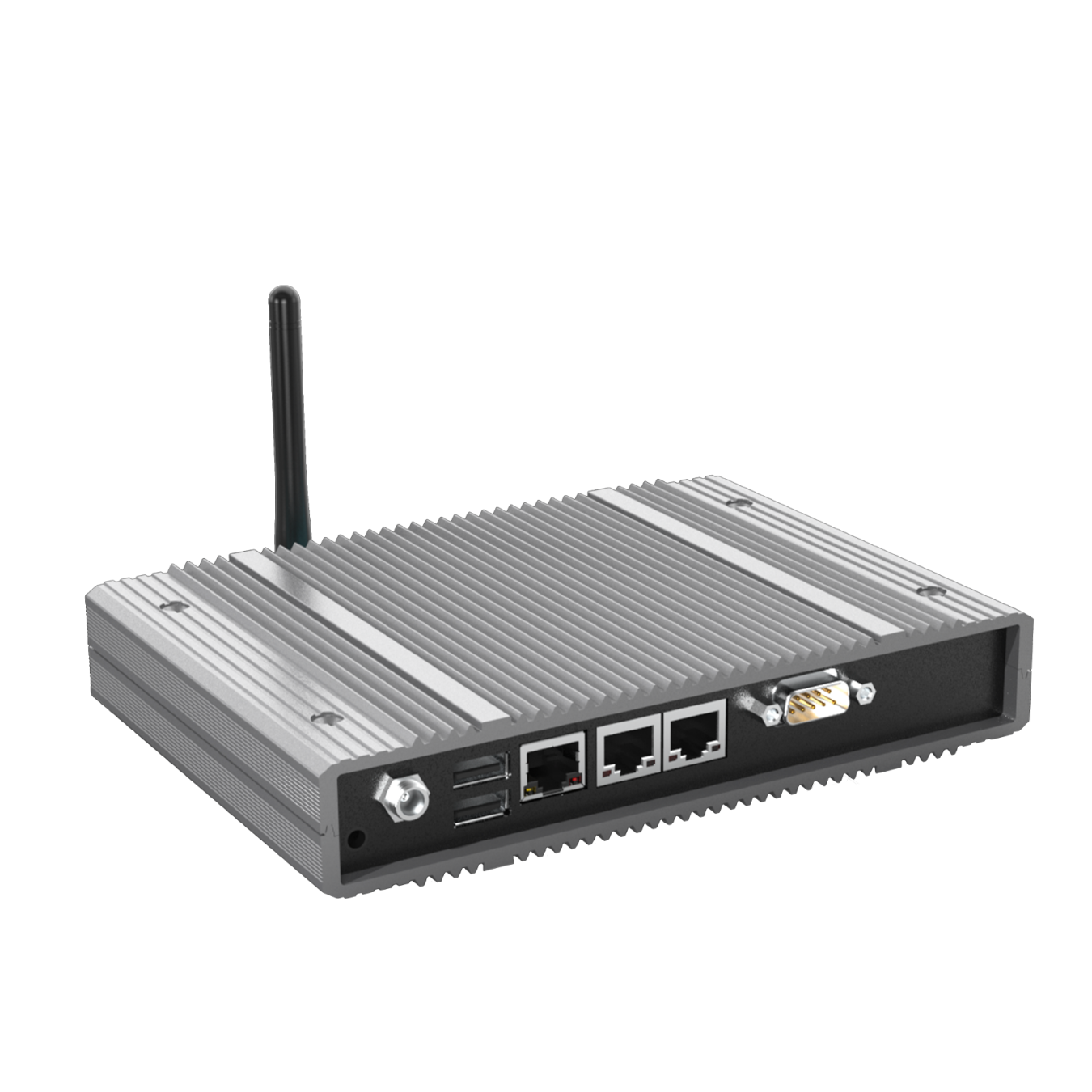

| Interfaces | Front I/O: • 1 x Power button • 1 x HDMI /DP • 1 x GbE RJ45 • 1 x SMA antenna connector (LoRa) • 1 x Push button • 2 x LED indicators Rear I/O: • 3 x GbE RJ-45 • 1 x RS-232 (DB-9) • 2 x USB 3.0 (type A) • 1 x DC jack |
| Other RF Connectivity | Ethernet: Four (4) RJ45 10/100/1000Mbps ports |
| Security | TPM 2.0 |
| Remark | Display ports: HDMI/DP |
