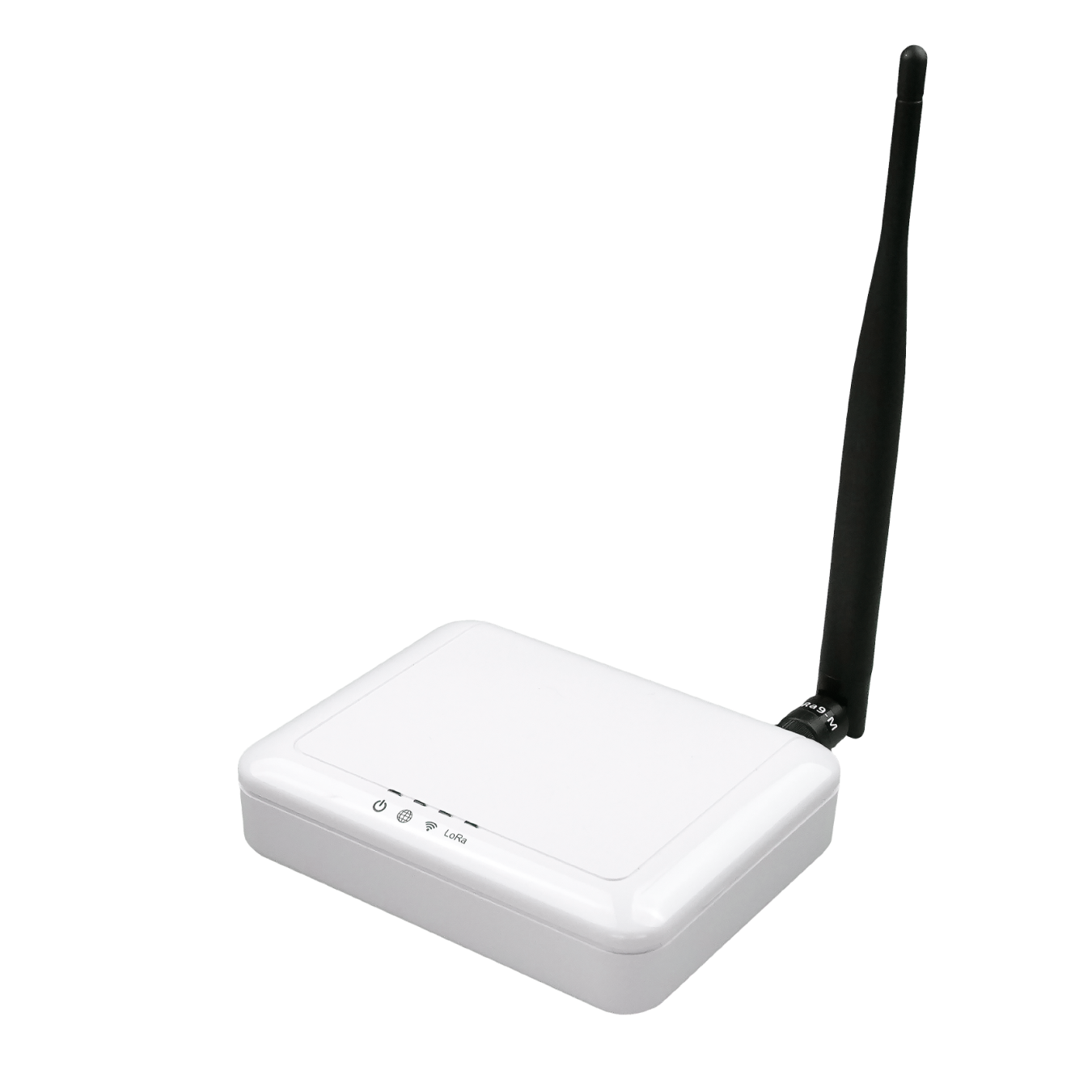

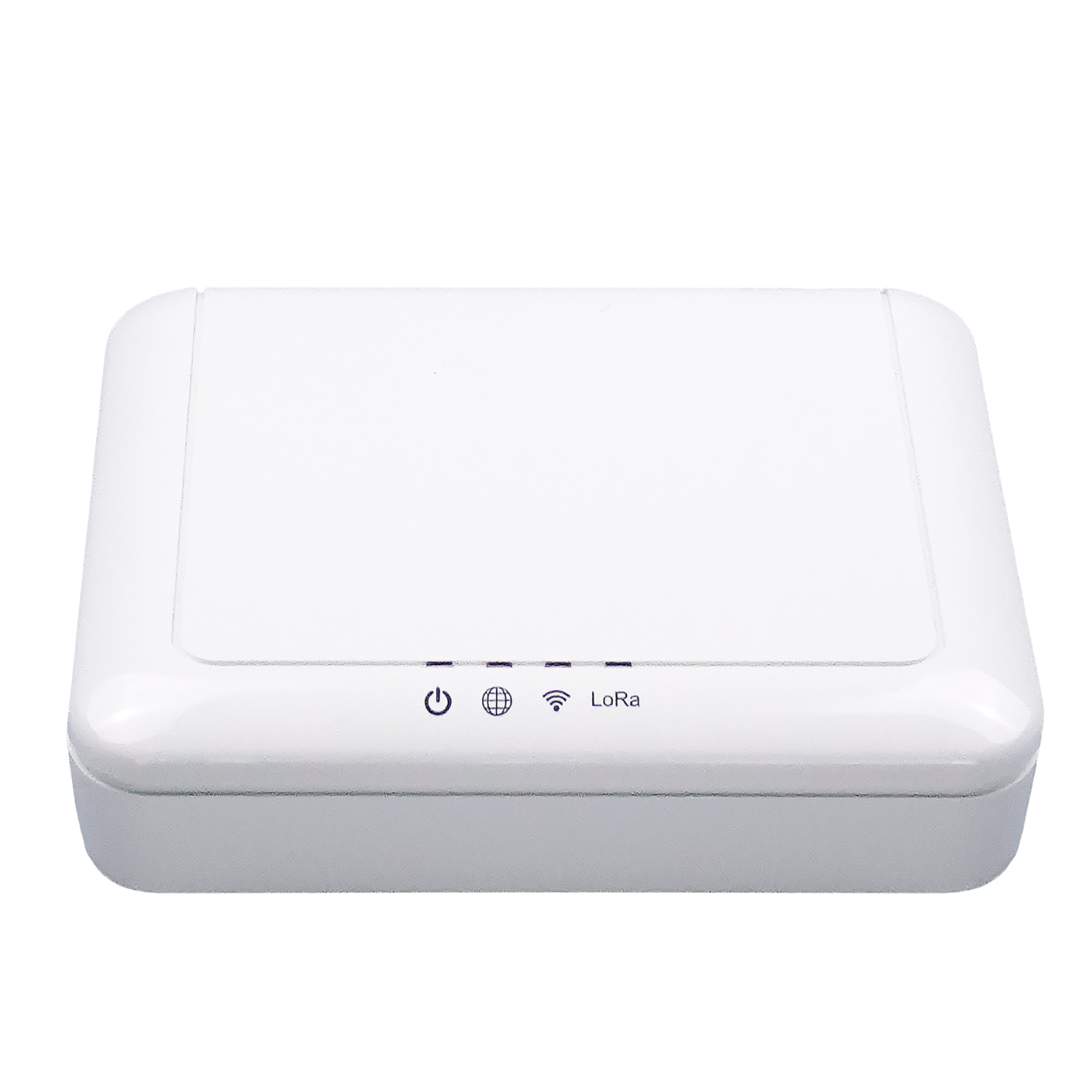

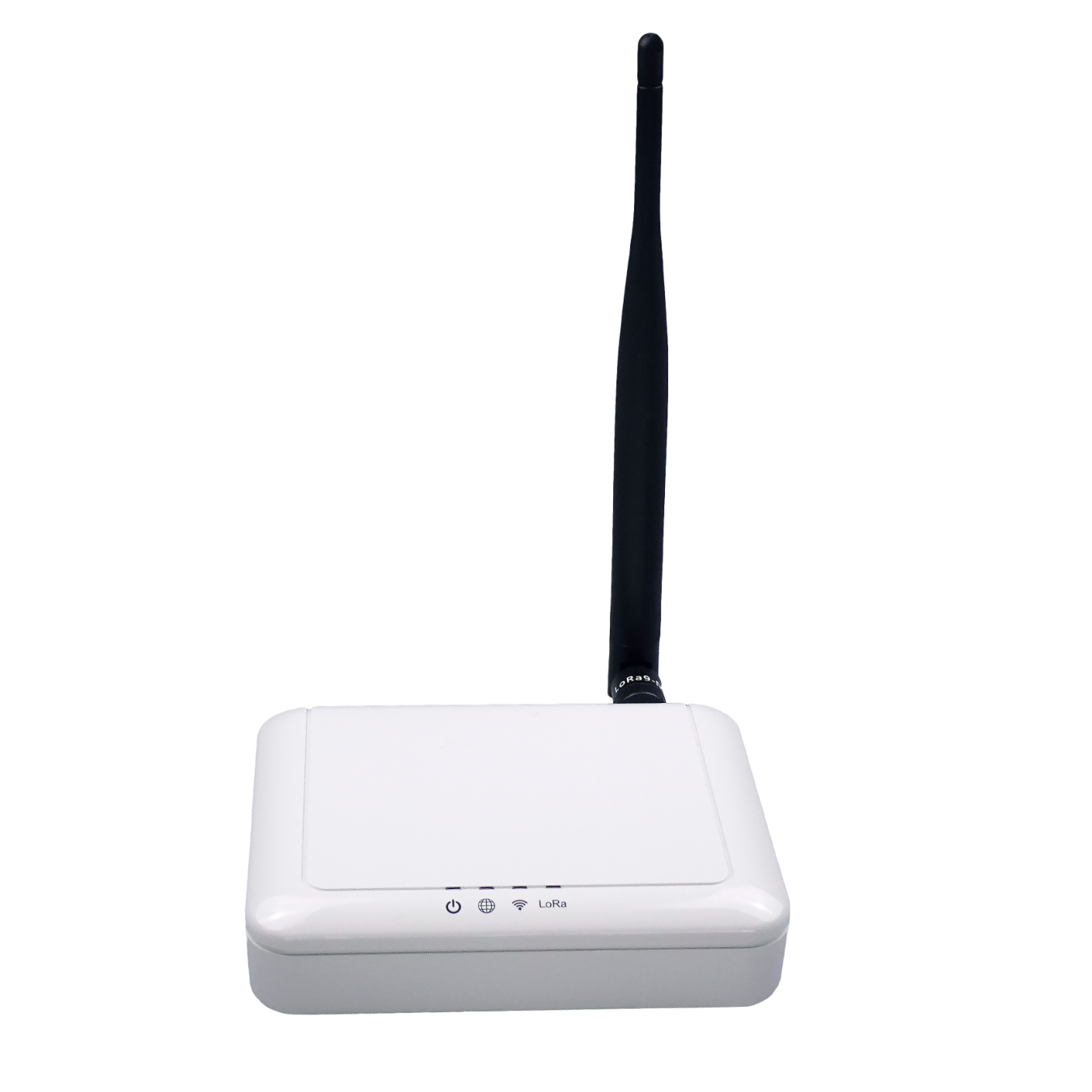

Indoor Femto Gateway
Optimized IoT Solutions for Small Businesses and Private Areas
Up to 8 concurrent channels for LoRa transmission
Built-in 2.4G 802.11b/g/n Wireless LAN
Patented repeater mode for last-mile coverage
Optional support of a wide frequency range from 470MHz to 928MHz in different SKU
Various Internet connections: Ethernet, Wireless bridge
Active scan for channel availability with RSSI levels
Web UI for LoRa and network configuration
Support Listen Before Talk for downlink
Ideal for indoor positioning
Support OTA and USB upgrade
Indoor Femto Gateway
Browan has been instrumental in the development of LPWAN system solutions and is an early provider of LoRaWAN® protocol-based end-to-end LPWAN solutions. The LoRaWAN® technology is designed to connect low-cost, battery-operated sensors over long distances in harsh environments that were previously too challenging or cost-prohibitive to connect. Because of its long-range, high penetration, and high sensitivity capabilities, it is a much more cost-effective way for service providers to deploy the LoRaWAN® network for sensor applications in the vertical market domain.
Browan's Indoor Femto Gateway is specifically designed for wide-area IoT applications. Applications include but are not limited to home security, automatic meter readings, monitoring fault indicators, monitoring streetlights, etc. This gateway is Femto type and very suitable for small businesses or private area use cases like parking spaces, exhibition centers, campuses, etc. It is also suitable for providing coverage for indoor blind spots.
LoRaWAN® is a mark used under license from the LoRa Alliance®。
| Details | |
|---|---|
| Model Name | WLRGFM-100 |
| Frequency | EU 862~870 MHz US 902~928 MHz India 865~867 MHz AS 923 MHz CN 470~510 MHz |
| Number of Channels | Up to 8 concurrent channels |
| Wireless LAN | 802.11 b/g/n 2.4G |
| WAN Protocol | LoRaWAN® |
| Modulation | Based on LoRaWAN® |
| RF Transceiver | SX1301 or SX1308 with SX1257 (additional SX1276 for LBT and background scan) |
| Antenna Type | Built-in Wi-Fi and LoRa antenna and one (1) external SMA connector for LoRa antenna |
| Transmit RF Power | 0.5W (up to 27 dBm) |
| Receive Sensitivity | Down to -142 dBm |
| Operation Temperature | -10℃ ~ 55℃ |
| Storage Temperature | -10℃ ~ 60℃ |
| Environmental Rating | IP40 |
| Power Type | 5VDC/2A via mini-USB port |
| Dimension | L:116 x W:91 x H:27 mm |
| Weight | 160 g |
| Interfaces | 1 LAN RJ45 10/100Mbps 1 USB 2.0 4 LED indicators 1 2.4G WiFi (11n) 1 Built-in WiFi Antenna 1 Built-in LoRa antenna 1 Switchable SMA connector |
| Type Approval | FCC/CE/TELEC/ANATEL/IC |
