Indoor Femto Lite Gateway
Cost-Effective and Robust Gateway for Indoor LoRaWAN Networks
Up to 8 concurrent channels for LoRa transmission
Built-in 2.4G 802.11b/g/n Wireless LAN
Various Internet connections: Ethernet, WiFi (Wireless bridge)
Support LoRaWAN® 1.0.3 packet forwarderandBasic Station mode(switched through local WEB GUI)
Ethernet/WiFi Configuration through local WEB GUI
Web UI for LoRa and network configuration
Support Listen Before Talk for downlink
Support F/W upgrade through BrowanOTA
Internal antennas for LoRa and WiFi connection

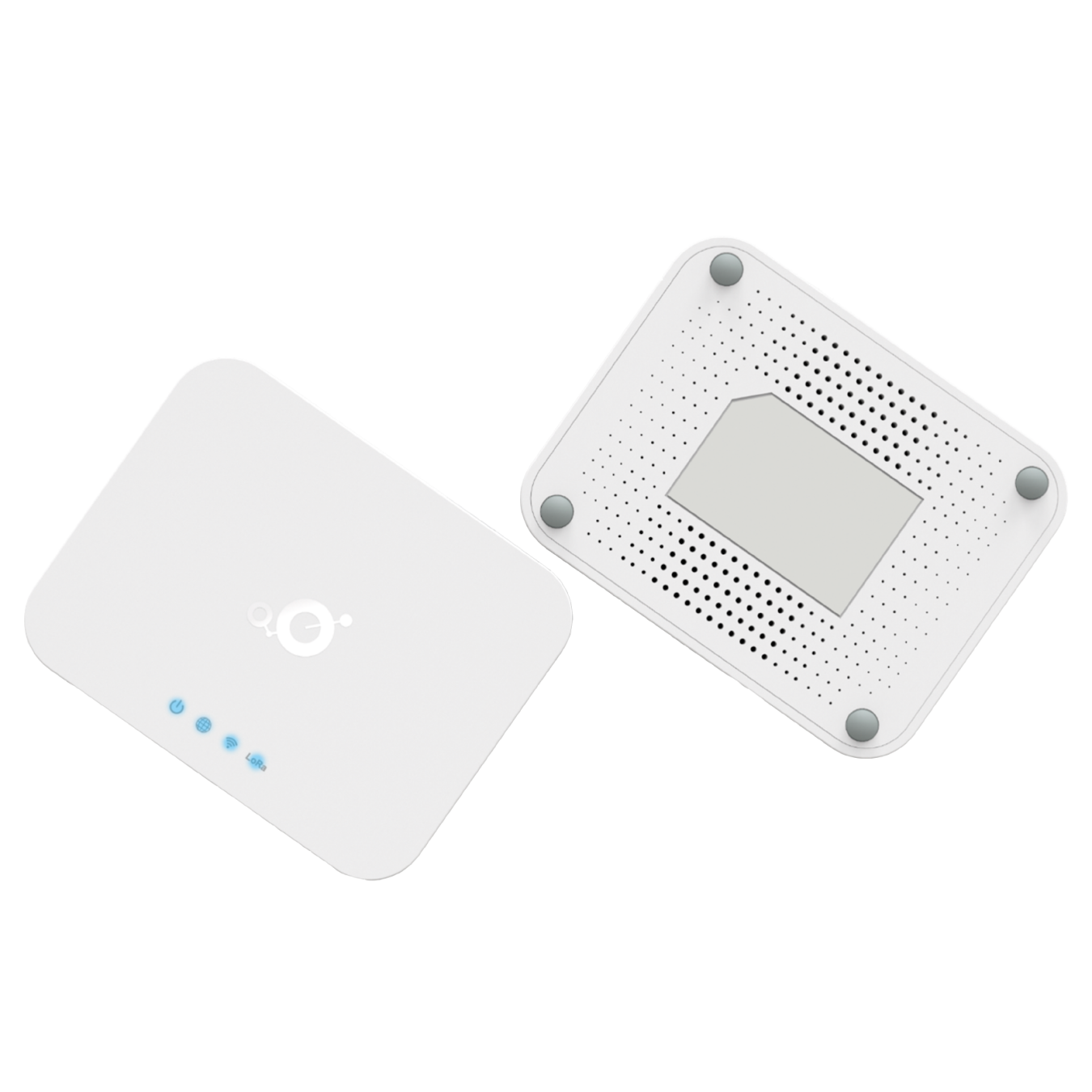

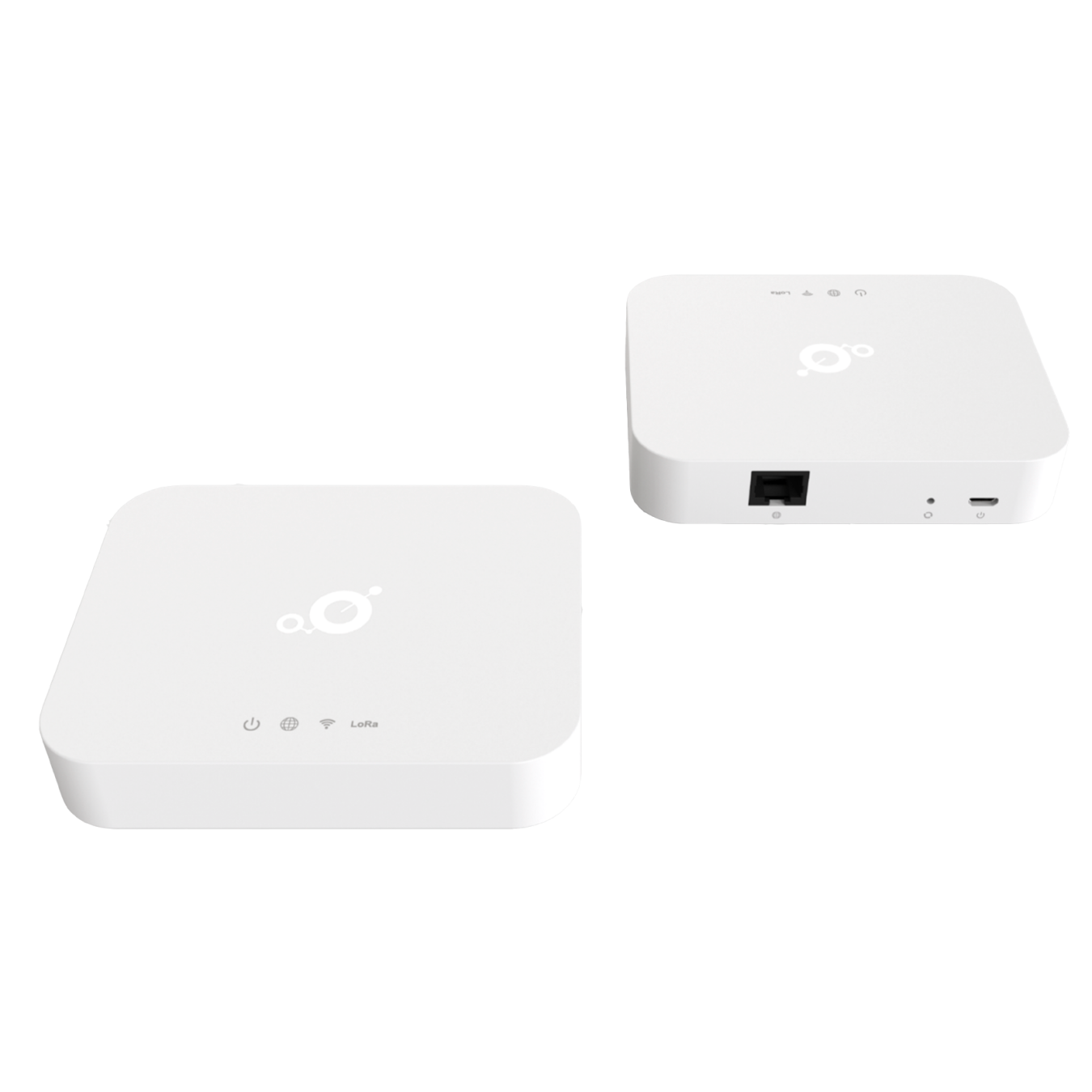

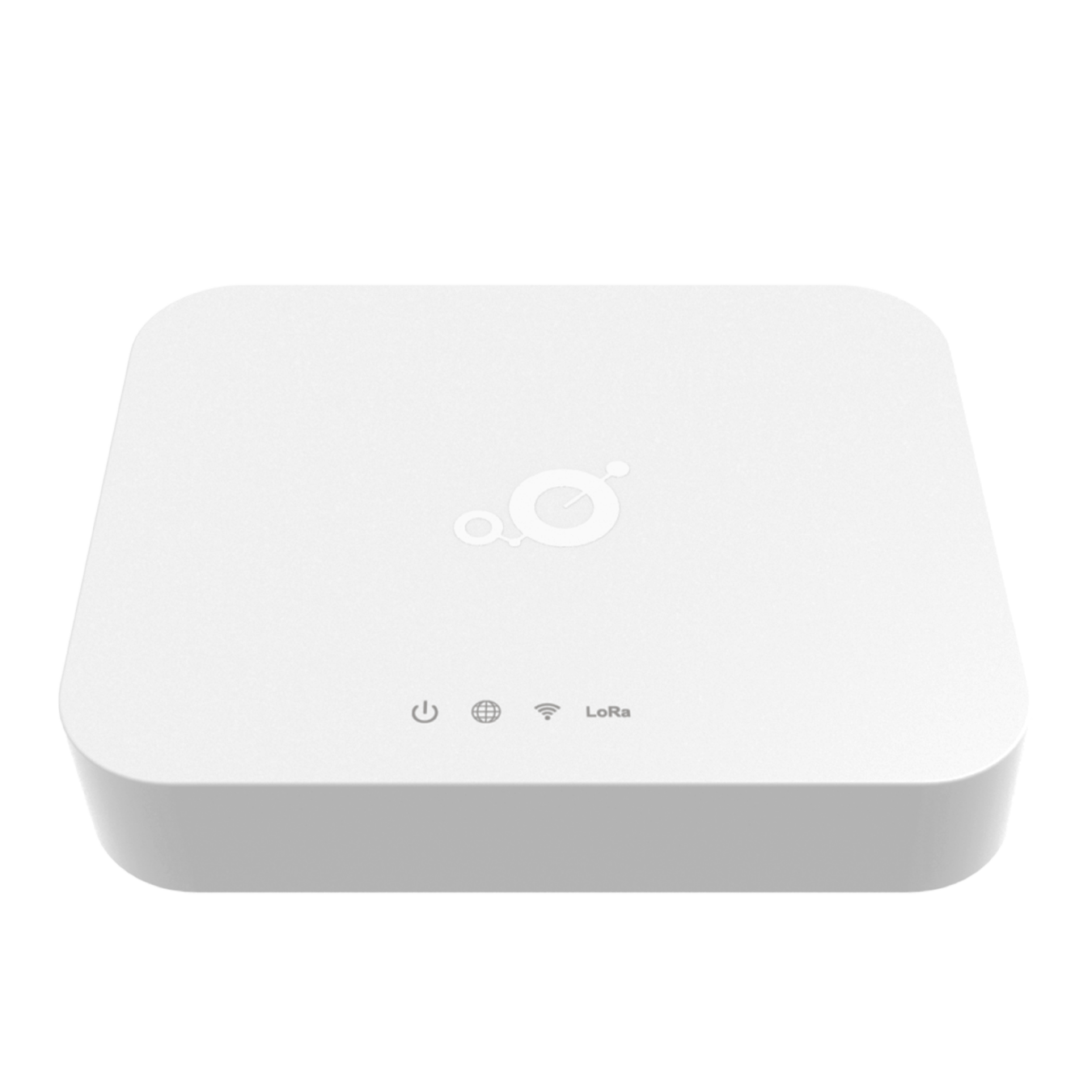

Indoor Femto Lite Gateway
Browan has been instrumental in the development of LPWAN system solutions and is an early provider of LoRaWAN® protocol-based end-to-end LPWAN solutions. The LoRaWAN® technology is designed to connect low-cost, battery-operated sensors over long distances in harsh environments that were previously too challenging or cost-prohibitive to connect. Because of its long-range, high penetration, and high sensitivity capabilities, it is a much more cost-effective way for service providers to deploy the LoRaWAN® network for sensor applications in the vertical market domain.
Browan's Indoor Femto Lite Gateway is specifically designed for wide-area IoT applications and is very cost-effective with a built-in antenna. Applications include but are not limited to home security, automatic meter readings, monitoring fault indicators, monitoring streetlights, etc. This gateway is Femto type and very suitable for small businesses or private area use cases like parking spaces, exhibition centers, campuses, etc. It is also suitable for providing coverage for indoor blind spots.
LoRaWAN® is a mark used under license from the LoRa Alliance®.
| Details | |
|---|---|
| Model Name | WLRRTES-106 |
| Frequency | EU 863~870 MHz US 902~928 MHz IN 865~867 MHz AS 923 MHz |
| Number of Channels | Up to 8 concurrent channels |
| Wireless LAN | 802.11 b/g/n 2.4G |
| WAN Protocol | LoRaWAN® |
| Modulation | Based on LoRaWAN® |
| RF Transceiver | Semtech SX1308 / SX1302 |
| Antenna Type | Built-in Wi-Fi and LoRa antenna |
| Transmit RF Power | 0.5W (up to 27 dBm) |
| Receive Sensitivity | -140 dBm |
| Operation Temperature | 0ºC ~ 50ºC |
| Storage Temperature | -10ºC ~ 60ºC |
| Power Type | 5VDC/2A via Micro-USB port |
| Dimension | L:116 x W:91 x H:27 mm |
| Weight | 160 g |
| Interfaces | 1 LAN 10/100Mbps 1 Micro-USB for power input 4 LED indicators 1 Reset Button |
| Security | AES 128 |
| Type Approval | CE / FCC |
