Industrial GPS Tracker
Robust Industrial Tracker with High-Resolution GNSS and IP66 Rating
Compliance to LoRaWAN® 1.0.3
EU, and US frequencies support
High-resolution GNSS module
IP66 equivalent
Industrial GPS Tracker

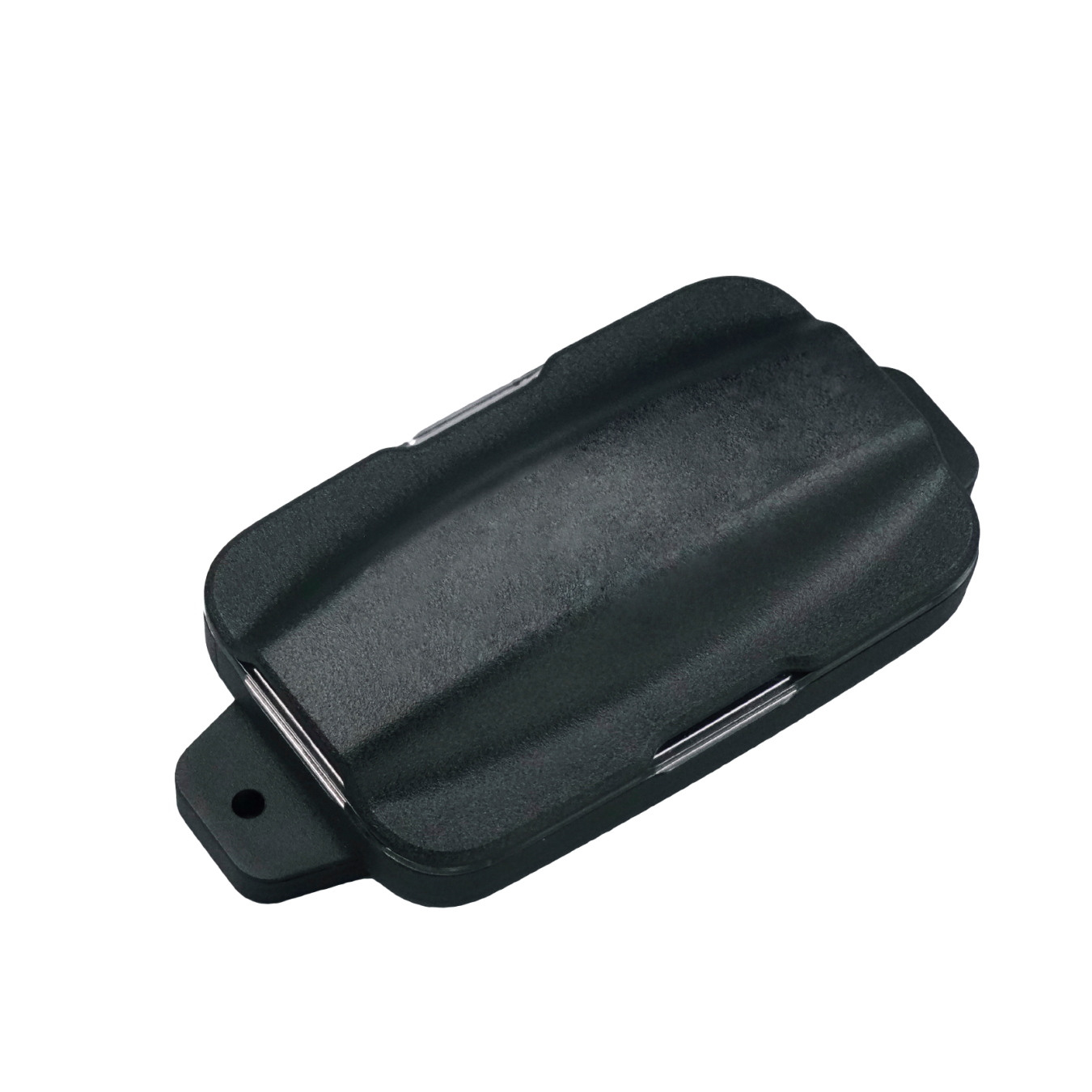

Browan's Industrial GPS Tracker is a versatile GPS tracking device designed for a wide range of applications, including bicycles, vehicles, and pets. Utilizing advanced LoRaWAN® connectivity and a high-resolution GNSS module, it offers reliable location tracking without the costs associated with traditional GPRS networks. With an IP66 rating, this durable tracker is built to withstand harsh environments, ensuring consistent performance in various conditions. Its integrated 3-axis accelerometer enhances tracking accuracy, making it an ideal choice for both personal and commercial asset management.
LoRaWAN® is a mark used under license from the LoRa Alliance®.
| Details | |
|---|---|
| Model Name | TNIT100 |
| Frequency | EU 863~870 MHz US 902~928 MHz |
| Transmit RF Power | +19dBm conducted |
| Antenna Gain | 0dBi Peak, -3dBi Avg |
| Receive Sensitivity | -138dBm conducted |
| Operation Temperature | -20°C to +70°C |
| Environmental Rating | IP 66 equivalent |
| Power Type | 1⁄2 AA Li-SOCl2 Battery x 2, 3.6V, 1200mAh |
| System Voltage | 3.1~3.6 V |
| Average Current | 170mA maximum/5uA minimum |
| Dimension | L:107 x D:27 x W:52mm |
| Weight | 45g |
| Sensor | (1) GNSS module (2) 3D MEMs accelerometer, (3) Hall-effect sensor (4) PCB Temperature: NTC 100k ohm (5) Battery Monitoring: Resistor divider |
| Type Approval | FCC/IC/CE |
| Remark | Battery life may vary based on uplink frequency and operating temperature. |
