LoRa Edge Tracker
Cutting-Edge Technology for Reliable Real-Time Tracking
Advanced LR1110 IC Chip with WiFi and GNSS Capabilities
Extended Battery Life and Low Power Consumption
Rugged and Versatile Design
Comprehensive Sensor Integration: Equipped with 3-Axis and Hall Effect Sensors for enhanced tracking and monitoring capabilities.
IP40 equivalent
Flexible Connectivity Options: Includes BLE for tracker configuration, multiple antennas for GNSS and WiFi, and diverse control lines for optimal RF switching.

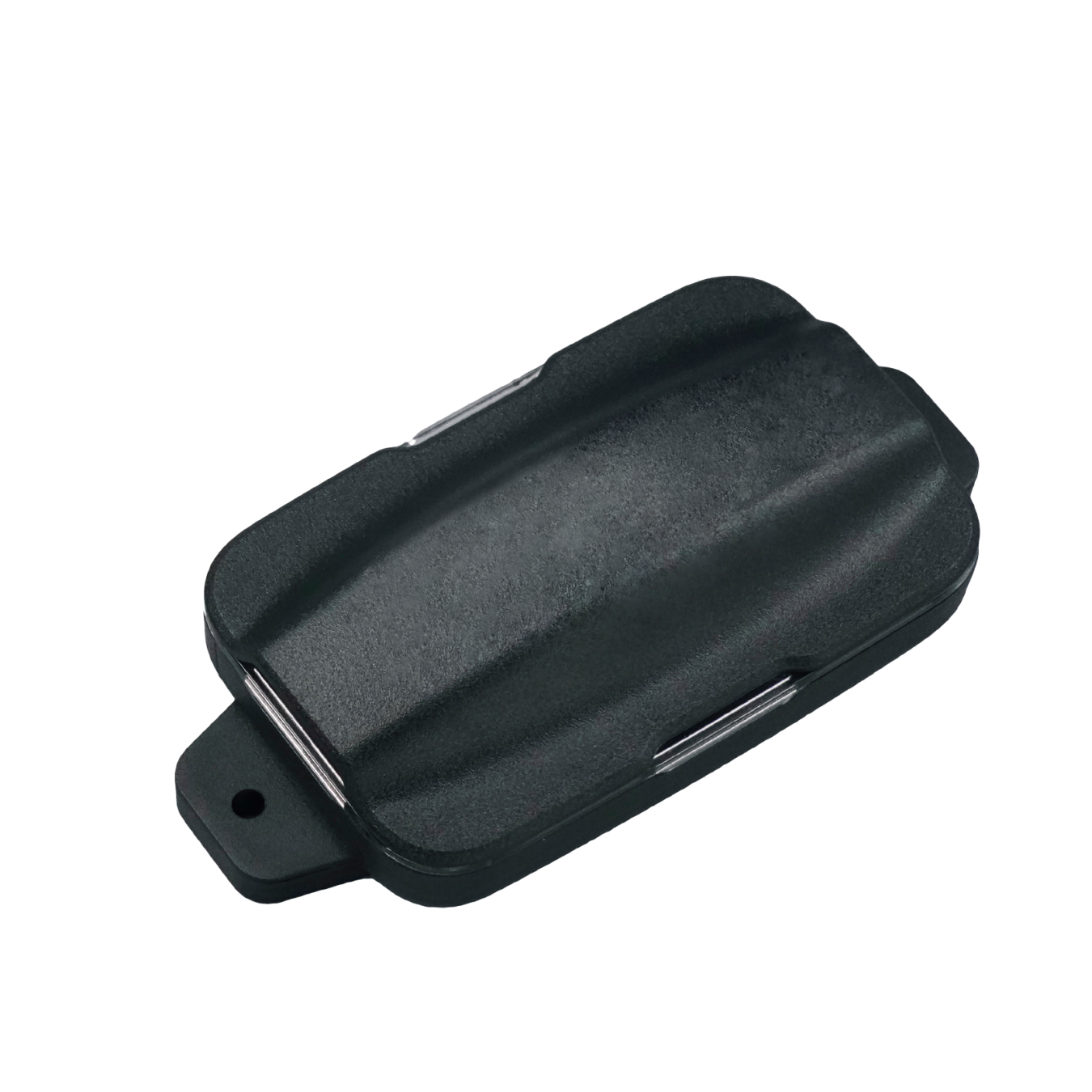

LoRa Edge Tracker
Introducing our latest product - LoRa Edge Tracker which utilizes the advanced LR1110 IC chip. Equipped with WiFi MAC and GNSS satellite scanning abilities, this tracker delivers accurate and real-time location data. Passing raw data to the cloud for processing guarantees low power consumption and longer battery life. Whether you need to track your valuable assets or monitor your fleet's movements, our tracker is designed to provide you with reliable and efficient tracking solutions. With its superior technology and ease of use, our tracker is the perfect tool to streamline your operations and improve your bottom line.
LoRaWAN® is a mark used under license from the LoRa Alliance®.
| Details | |
|---|---|
| Block Diagram | The control signals from/to the MCU and the Semtech LR1110 are: 1 x SPI, coming from the MCU to the LR1110 SPI interface LR1110 interface Reset / IRQ / Busy line I2C coming from the MCU to the accelerometer sensor GPIO for the Hall Effect sensor and user button Control lines for RF switch: Two from the MCU, for GNSS antenna diversity and Wi-Fi/BLE selection. One from the LR1110, for LoRa RX/TX path selection. |
| Architecture | The Semtech LoRa Edge™ Tracker Reference Design architecture has the following characteristics: LR1110 with Wi-Fi and GNSS capabilities GNSS antenna diversity Patch antenna PCB antenna STM32WB55 with BLE for tracker configuration and update 2400mAh battery (2x 1200mAh) 52 x 85 x 27mm IP66 housing LEDs 3-Axis & Hall Effect Sensors Maximum transmit output power = +22dBm Typical sensitivity level: LoRa: -140dBm at SF12 BW 125kHz -127dBm at SF7 BW 125kHz GNSS: -140dBm |
| Recommended Operating Conditions | Maximum supply voltage: 3.6V Operating temperature: -40 to +60°C Max current: 150mA Idle current: 10.8μA Maximum transmit output power: +22dBm Min RF input level for LoRa® detection SF7 BW 125kHz: -127dBm Min RF input level for LoRa detection SF12 BW 125kHz: -140dBm Min RF input level for GNSS detection: -140dBm Min RF input level for IEEE 802.11b detection: -92dBm |
| Remark | Battery life may vary based on uplink frequency and operating temperature. |
