Indoor MiniHub Pro Gateway
Versatile LoRaWAN Gateway for Seamless AWS Connectivity
EU, US band supported
WiFi backhaul
Wall-type plug with multiple plug options
Power input: Wall plug type / USB type C port
802.11 b/g/n, Client Mode
Compact design for mobile application
Built-in LoRa & WiFi antenna
ESP32-D0WD by Espressif Systems
FreeRTOS support with AWS Qualification
Indoor MiniHub Pro Gateway

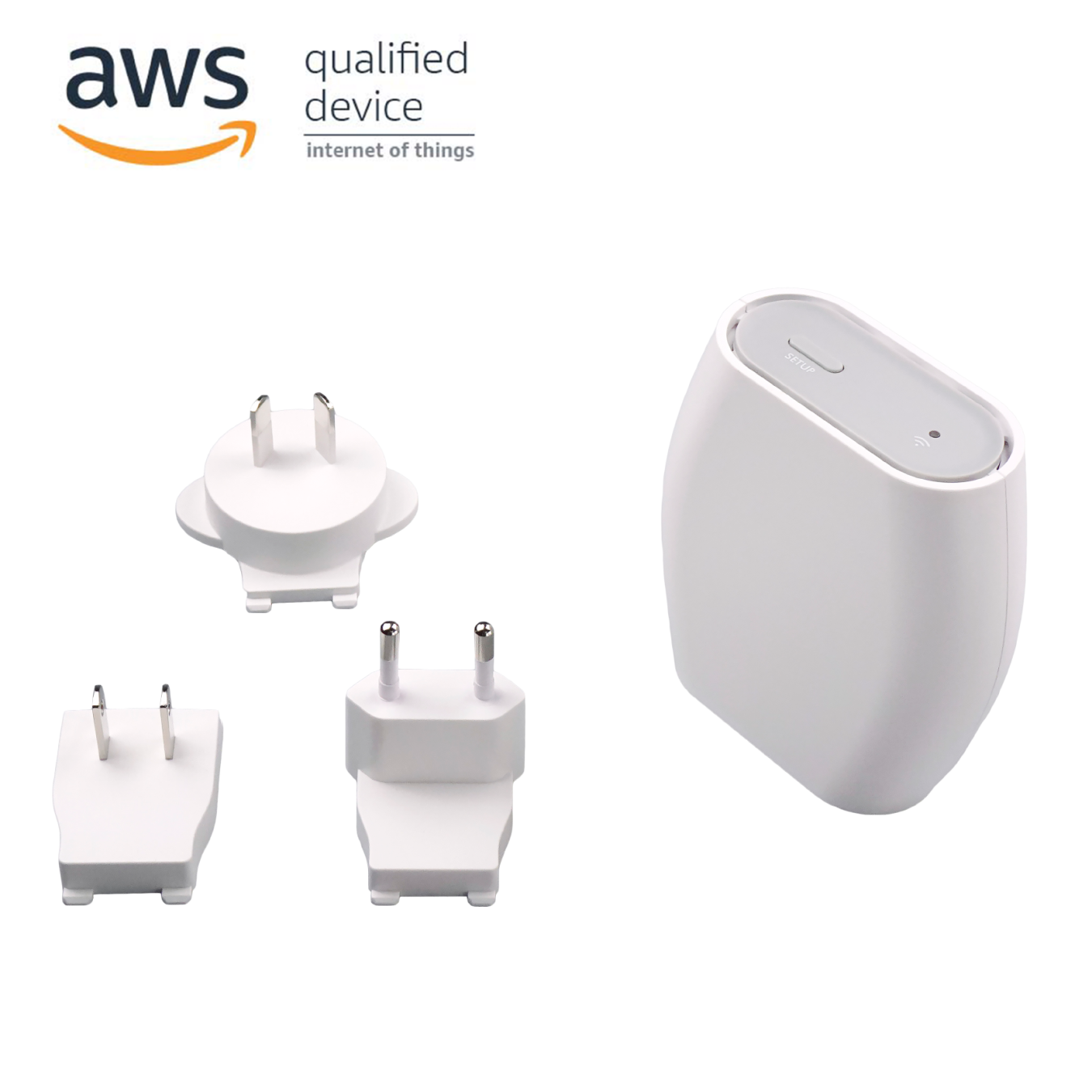

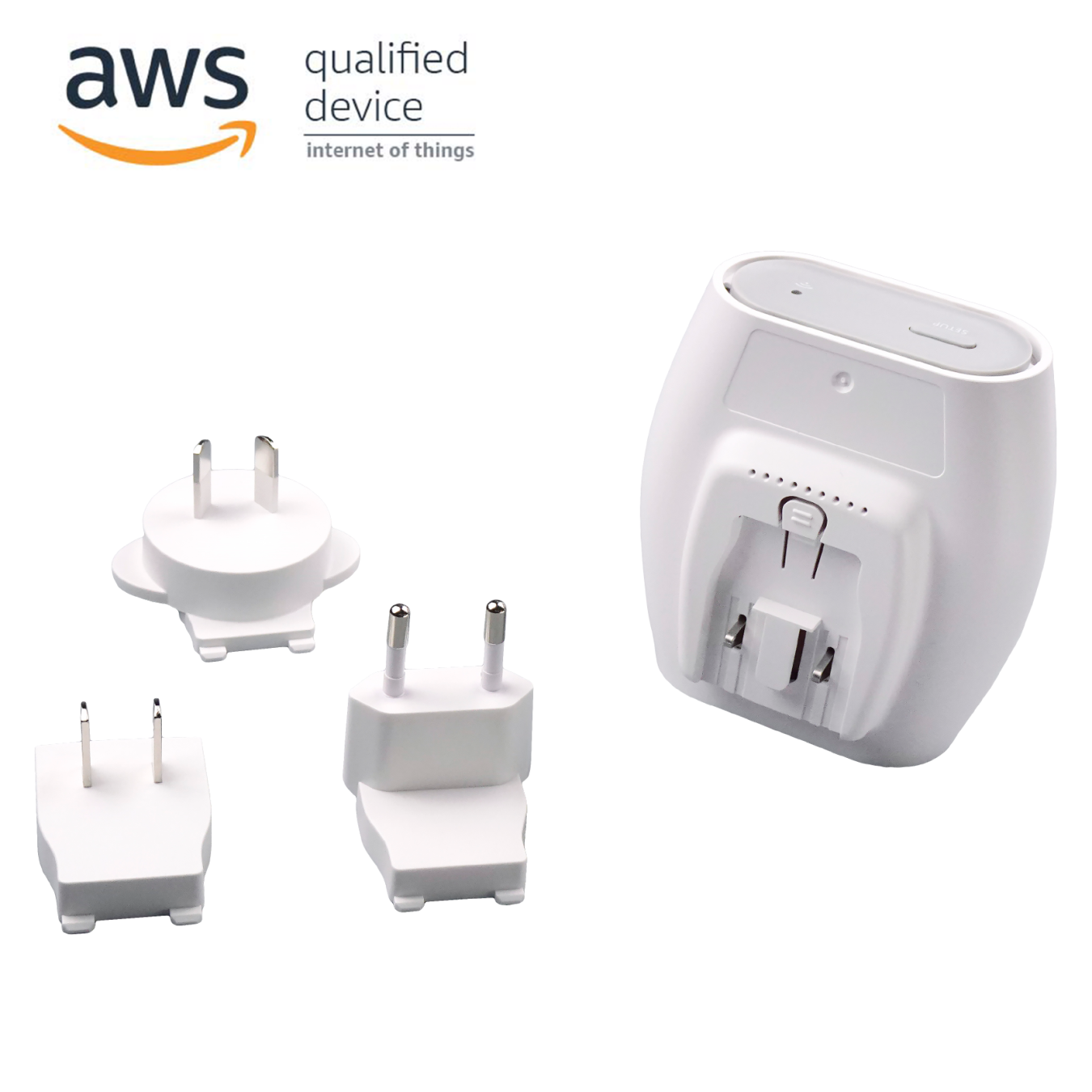

The Minihub Pro is designed to enable connection to the AWS IoT Core. It is also a low-cost LoRaWAN®-compliant gateway utilizing a WiFi backhaul. It is a wall-plug type with interchanged plug options. The gateway also includes a USB-C charging port that makes it ideal for mobile applications or to enlarge signal coverage.
LoRaWAN® is a mark used under license from the LoRa Alliance®.
AWS Qualified Device
Real Story from Our Customers
| Details | |
|---|---|
| Model Name | WLRRTES-102 |
| Frequency | EU 863~870 MHz US 902~928 MHz |
| Number of Channels | 8 concurrent channels |
| Wireless LAN | 802.11 b/g/n, Client Mode |
| Modulation | Based on LoRaWAN® |
| RF Transceiver | Semtech SX1308 / SX1302 |
| Antenna Type | 1 Build-in LoRa antenna 1 Build-in Wi-Fi antenna |
| Transmit RF Power | 0.5W (up to 27 dBm) |
| Receive Sensitivity | -140 dBm |
| Operation Temperature | 0-40°C |
| Power Type | DC 5V / 2A, wall plug with internal power module(IRM-10-5) |
| Dimension | L:90xH:80xD:40mm |
| Weight | 200g |
| Interfaces | 1 USB Type-C (900mA) 1 Setup Button 1 Reset Button |
| Backhaul | Wi-Fi 2.4 GHz |
| Security | AES 128 |
| Type Approval | CE/FCC/IC/RCM/WPC/RoHS |
