Open/Close Sensor
Enhanced Security with Smart Door and Window Monitoring
Compliance to LoRaWAN® 1.0.3
Hall-Effect sensor
10 mm detection range
IP50 equivalent
EU, US, and Asia frequencies supported
0 to 50°C operation temperature range
Open/Close Sensor

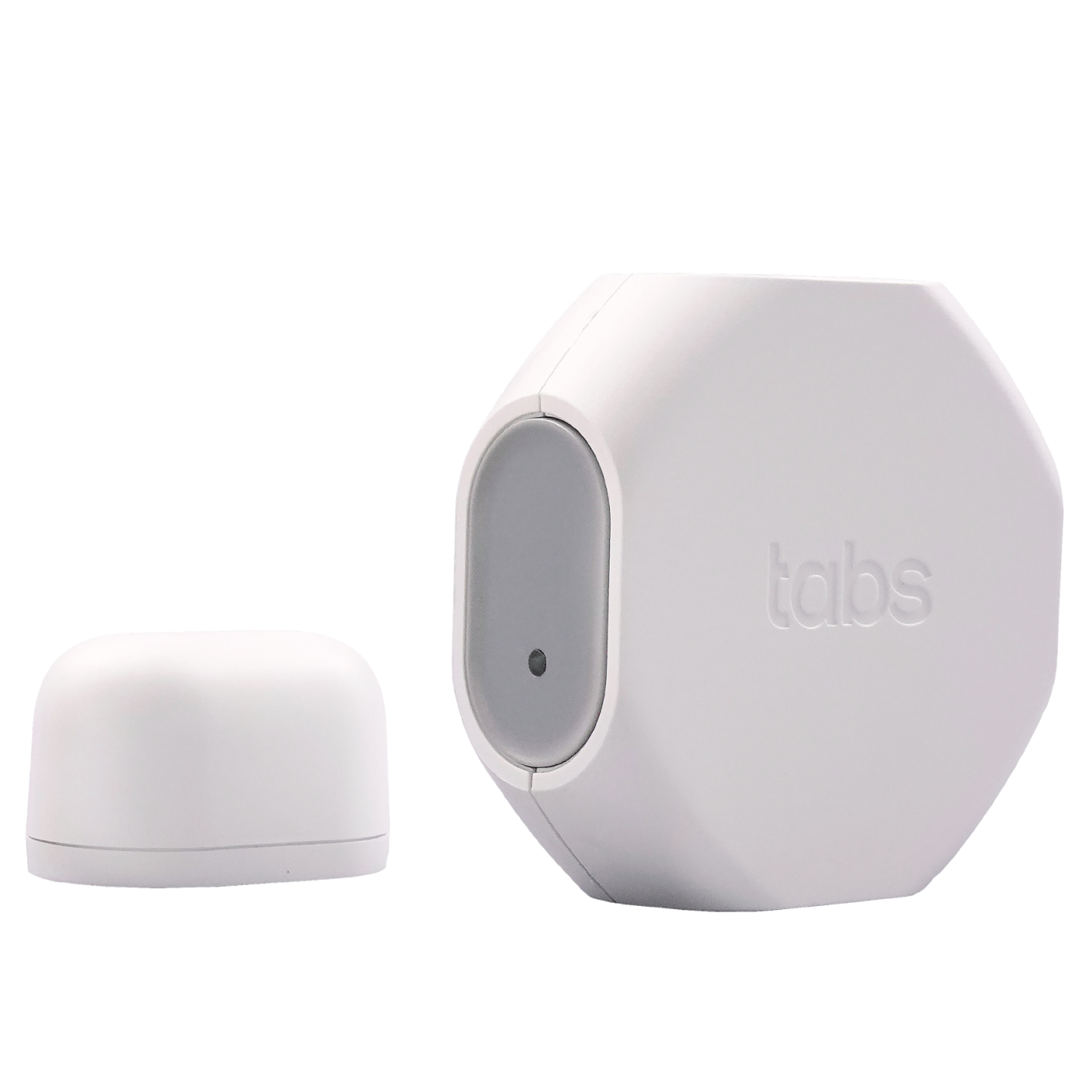

The Open/Close Sensor fits into any interior design and is easy to install. It is composed of two parts. The main body contains active electronics to measure magnetic fields and transmit data, if any changes, to a LoRaWAN® network. The other part is a permanent magnet of sufficient field strength to be detected by the Hall-Effect sensor on the main body.
LoRaWAN® is a mark used under license from the LoRa Alliance®.
| Details | |
|---|---|
| Model Name | TBDW100 |
| Frequency | EU 863~870 MHz US 902~928 MHz |
| Protocol | LoRaWAN® 1.0.3 |
| Antenna Type | Build-in LoRa Antenna |
| Transmit RF Power | US: +19dBm EU: +17dBm |
| Antenna Gain | -2dBi Peak, -5dBi Avg |
| Operation Temperature | 0 to 50°C |
| Environmental Rating | IP50 |
| Power Type | 1⁄2 AA Li-SOCl2 Battery x 1, 3.6V, 1200mAh |
| Battery Lifetime* | Up to 16 months |
| Average Current | 135mA maximum / 100uA minimum |
| Dimension | L:50 x D:20 x W:50mm |
| Weight | 30g without battery 40g with battery |
| Sensor | Hall-Effect sensor |
| Detection Distance | 10 mm |
| Type Approval | CE/FCC/IC |
| Remark | Battery life may vary based on uplink frequency and operating temperature. |
