Open/Close Sensor EBL - LoRaWAN® Version

Real-time Alerts for Open/Close Status and Environmental Changes
Compliance to LoRaWAN® 1.0.3
EU, and US frequencies support
Hall-Effect sensor with a detection range of 1 cm
IP40 equivalent
Built-in 3-axis Accelerometer to detect any shock, vibration of an abnormal movement
Support coverage test by pressing the test button
Built-in alarm buzzer with sound pressure level of 80 dB(min)
Power on-and-play installation
Estimate battery lifetime: 3 years*

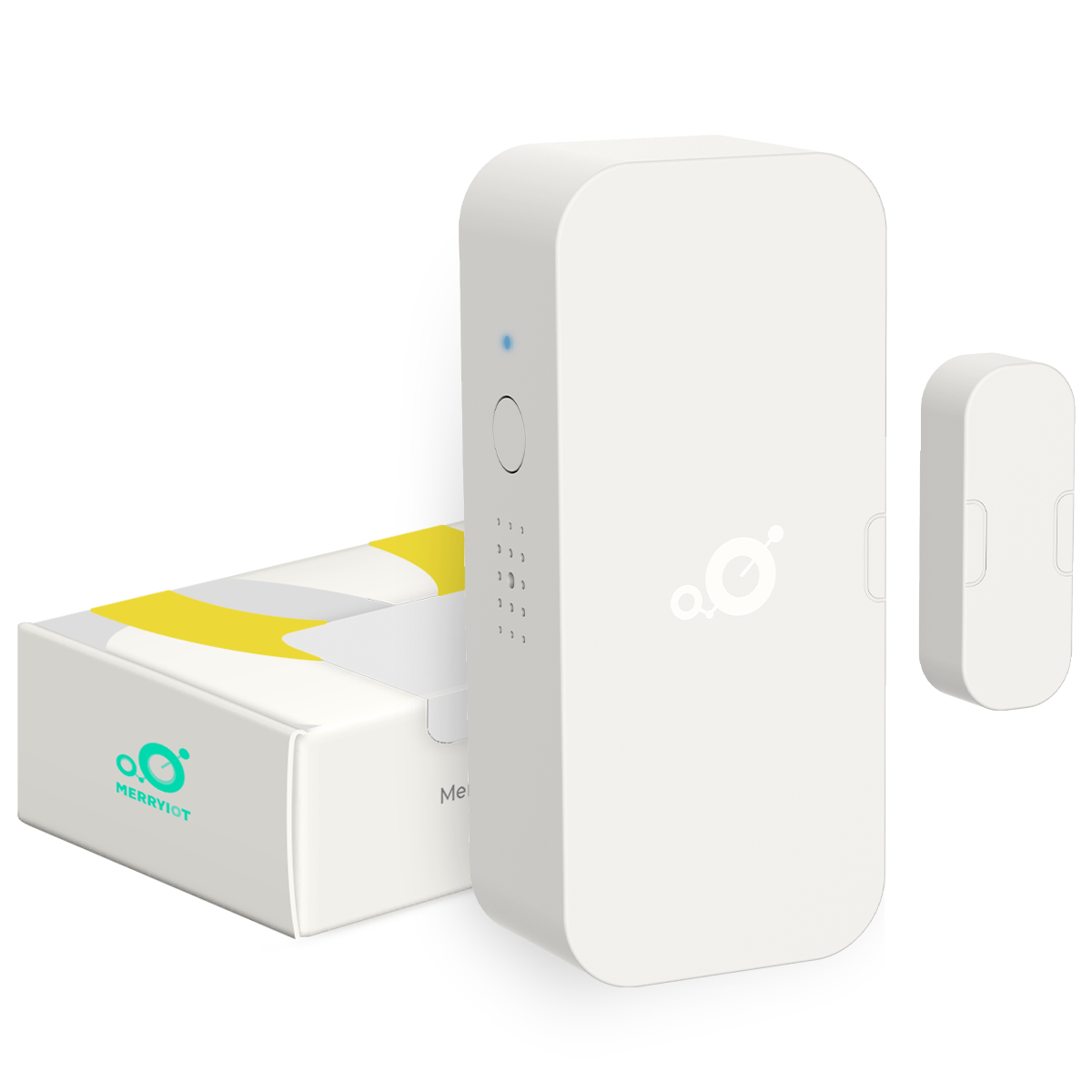

Open/Close Sensor EBL - LoRaWAN® Version

The MerryIoT Open/Close sensor is an advanced solution for enhancing security in your home or business. Designed for seamless integration, it features a Hall-Effect sensor to detect door and window openings, along with built-in temperature, humidity, and vibration sensors. This versatile device provides real-time alerts for any unauthorized access and offers tamper notifications for added peace of mind. With easy installation and a battery life of up to three years, it connects effortlessly to Amazon Sidewalk, ensuring reliable monitoring and control wherever you are.



Note: LoRaWAN® and Amazon Sidewalk connectivity are available in different SKUs. Please consult with us before making your purchase to ensure you select the right option for your needs.

Features


Comprehensive Monitoring with 4-in-1 Functionality



Tamper Detection
Built-in alarm buzzer
Power on-and-play installation

Perfect for Windows or Doors

Provide a secure living space for your children and pets

The MerryIoT Open/Close sensor uses a magnetic switch to detect open doors and windows, including mailboxes and pet doors. It alerts you if your pet tries to escape or if children open restricted doors, providing immediate notifications via the app for timely security measures.

Security for people and property

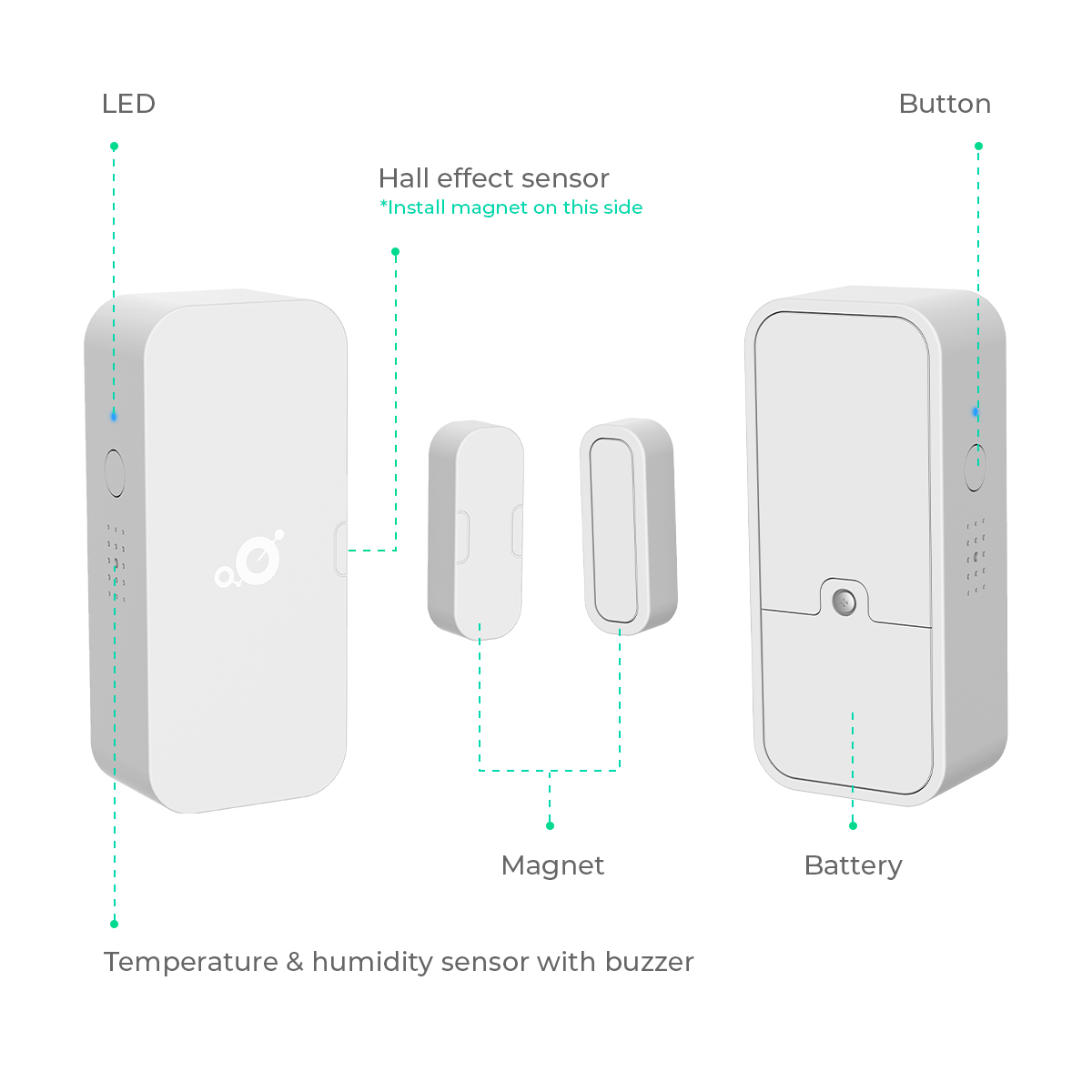

Integrated 4-in-1 sensor: Open/Close, Temperature, Humidity, Vibration

Install the sensor on drawers or cabinets to protect valuable items. It detects even the slightest vibration and alerts you via your mobile phone, ensuring you’re promptly notified of any attempted access or tampering with your secure areas.
Details
Model Name DW10
Frequency EU 863~870 MHz

US 902~928 MHz
Protocol LoRaWAN 1.0.3
Antenna Gain -2dBi Peak
Receive Sensitivity -135dBm
Operation Temperature 0 to 50°C
Environmental Rating IP40 equivalent
Power Type ½ AA Li-SOCl2 Battery x 2pcs, 3.6V, 2400mAh
Battery Lifetime* Up to 3 years
Average Current 135mA maximum / 100uA minimum
Dimension L:90 x D:28 x W:40mm
Weight 69g
Sensor (1) Hall-Effect sensor

detection range: 1cm

(2 )Temperature sensor:

Accuracy: ± (1°C)

(3) Humidity sensor:

Accuracy: ± 5 %

(4) Three-axis linear accelerometer
Type Approval CE/FCC/IC

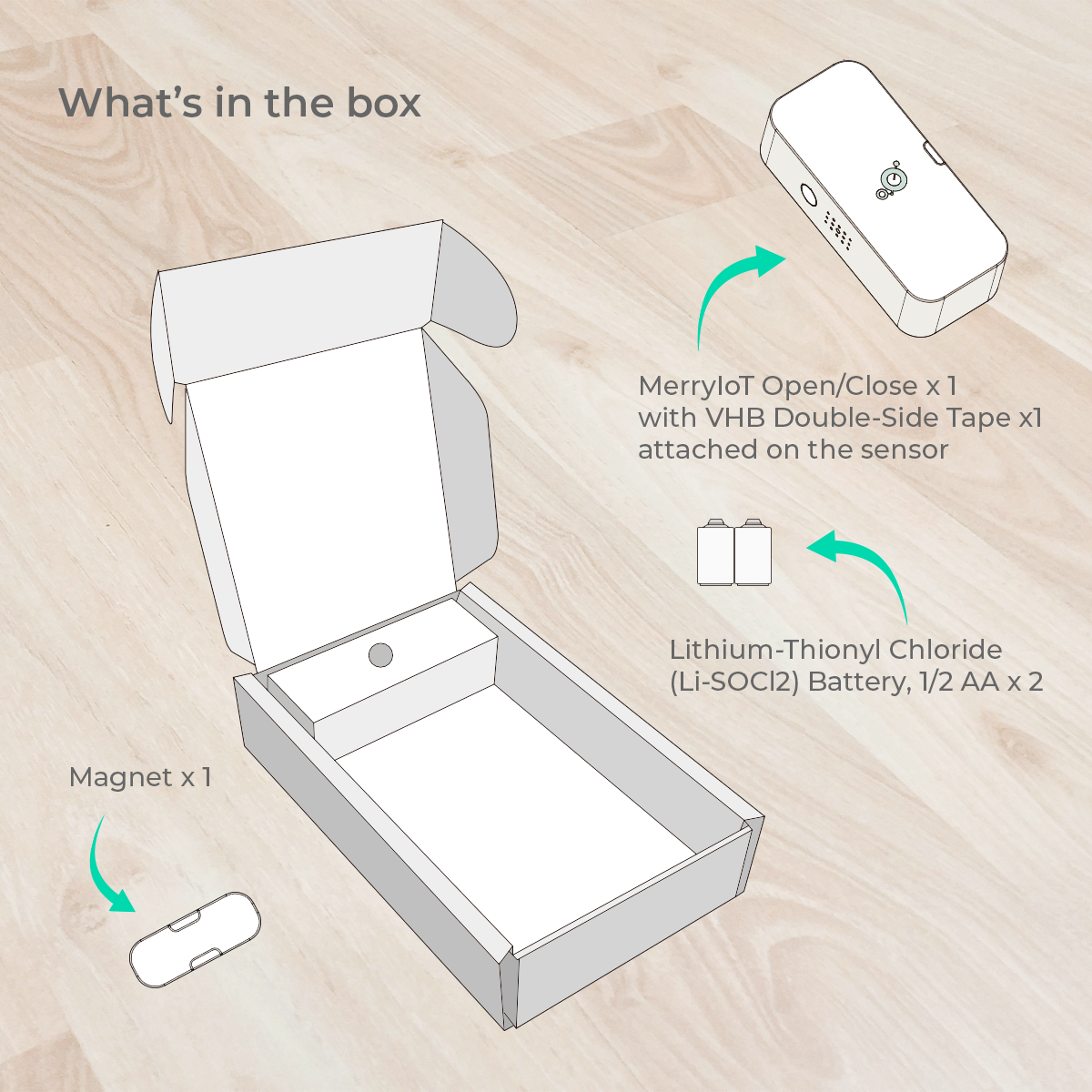

Accessories Magnet
Size: 40mm x 15 mm x 10 mm
Remark Battery life may vary based on uplink frequency and operating temperature.
