Open/Close Sensor EBL - Sidewalk Version
Enhanced Security with Tamper Notifications and Vibration Detection
Works with Amazon Sidewalk
EU, and US frequencies support
Hall-Effect sensor with a detection range of 1 cm
IP40 equivalent
Built-in 3-axis Accelerometer to detect any shock, vibration of an abnormal movement
Support coverage test by pressing the test button
Built-in alarm buzzer with sound pressure level of 80 dB(min)
Power on-and-play installation
Estimate battery lifetime: 3 years*

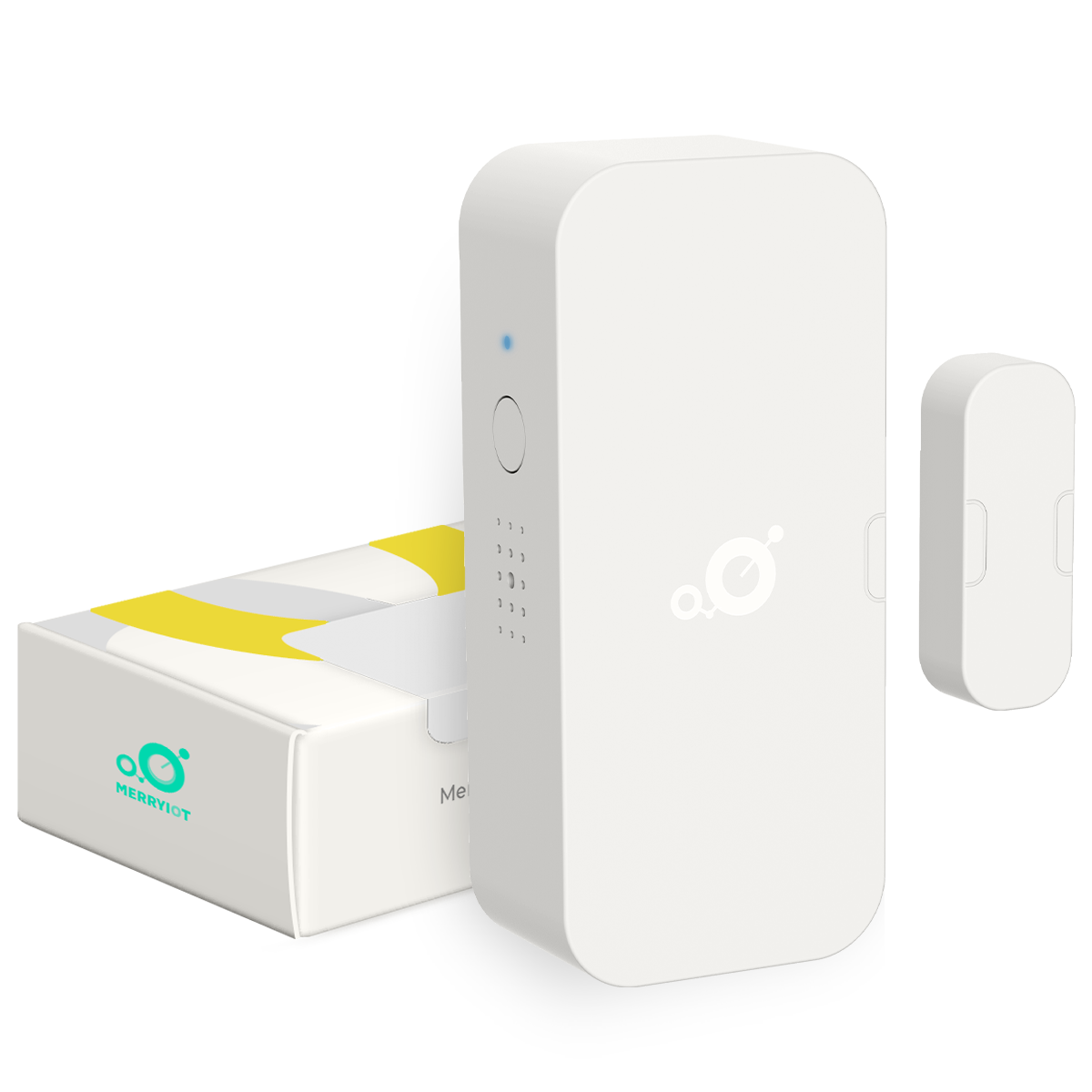

Open/Close Sensor EBL - Amazon Sidewalk Version

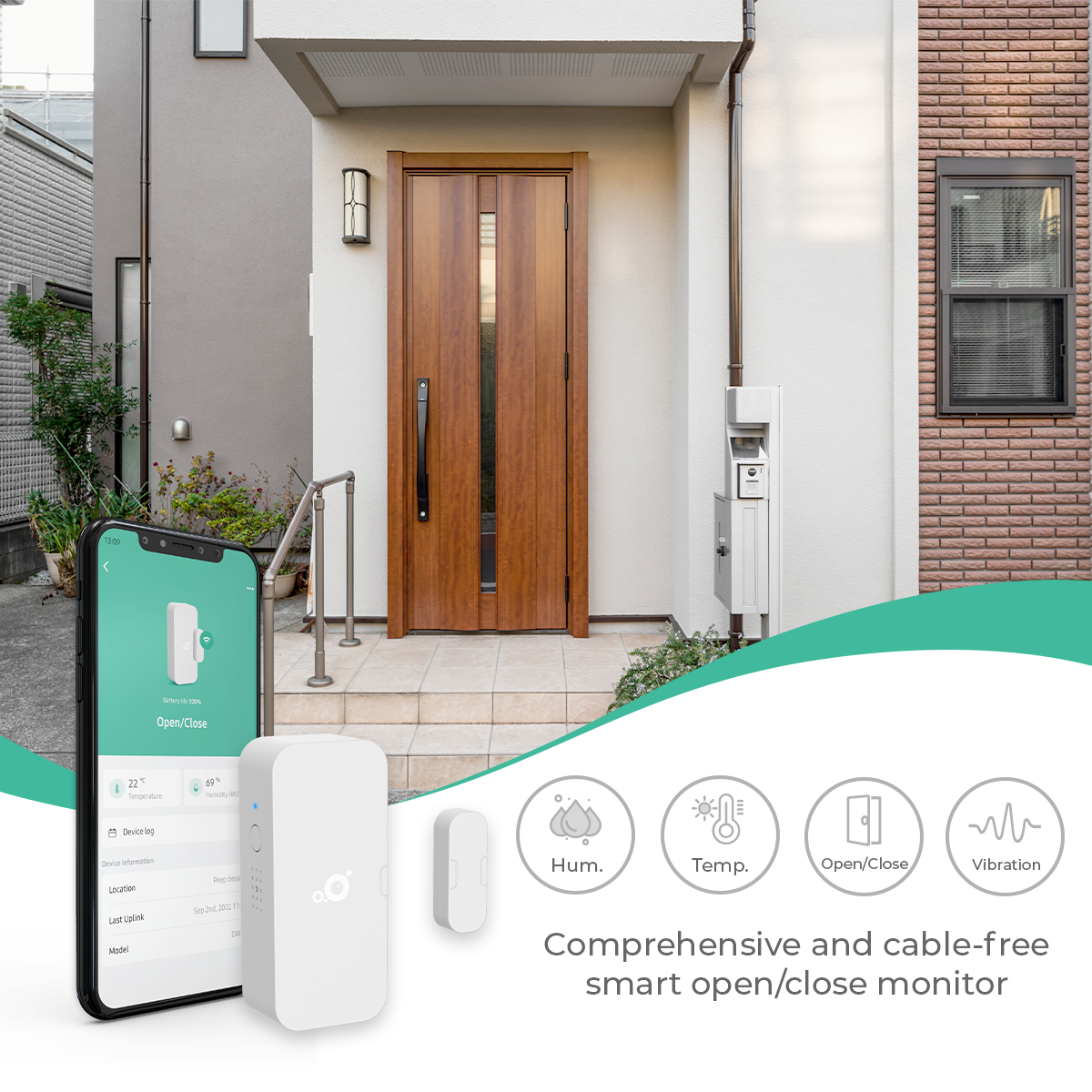

The MerryIoT Open/Close sensor is an advanced solution for enhancing security in your home or business. Designed for seamless integration, it features a Hall-Effect sensor to detect door and window openings, along with built-in temperature, humidity, and vibration sensors. This versatile device provides real-time alerts for any unauthorized access and offers tamper notifications for added peace of mind. With easy installation and a battery life of up to three years, it connects effortlessly to Amazon Sidewalk, ensuring reliable monitoring and control wherever you are.
Note: LoRaWAN® and Amazon Sidewalk connectivity are available in different SKUs. Please consult with us before making your purchase to ensure you select the right option for your needs.
Features
Tamper Detection
Built-in alarm buzzer
Power on-and-play installation
Perfect for Windows or Doors
Provide a secure living space for your children and pets

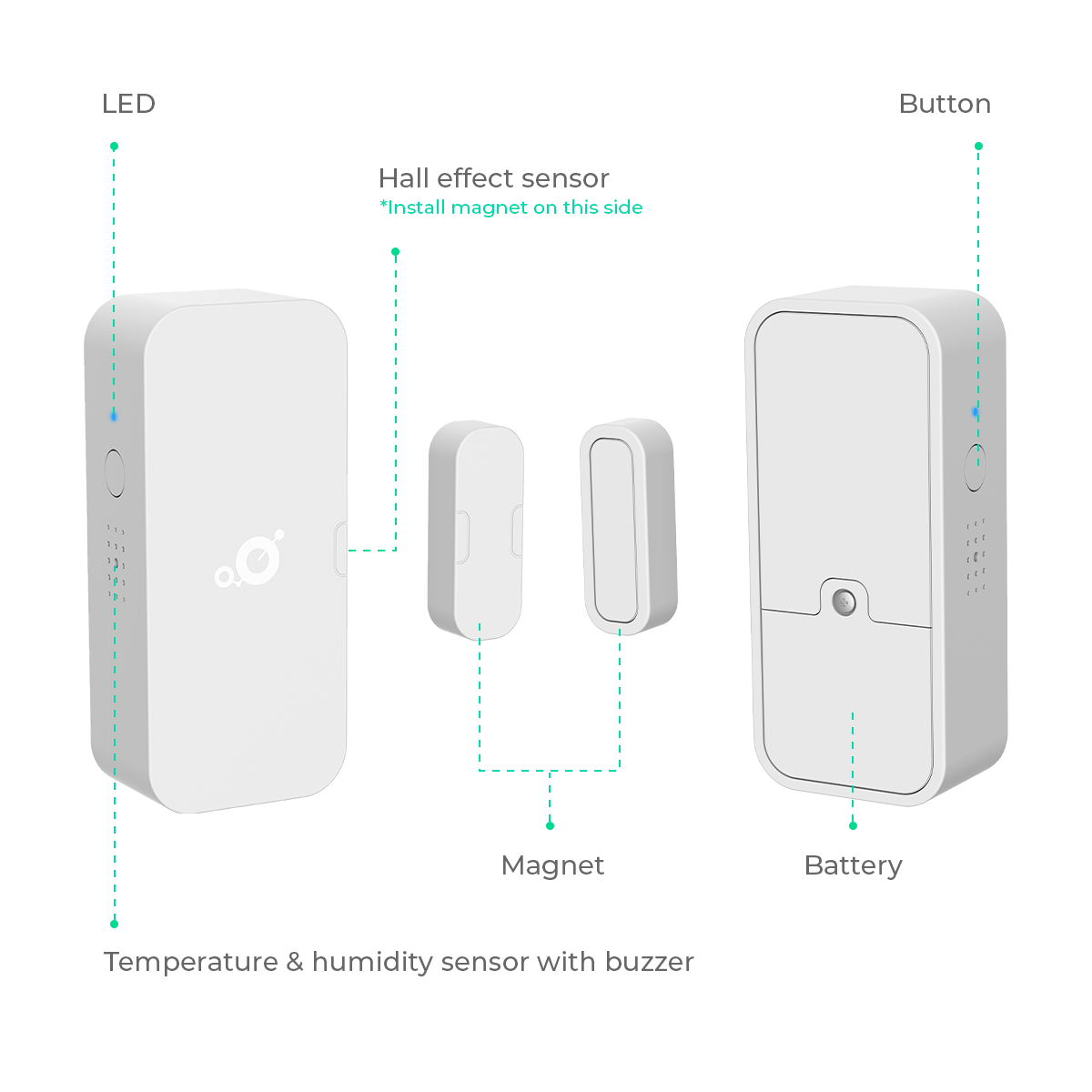

The MerryIoT Open/Close sensor uses a magnetic switch to detect open doors and windows, including mailboxes and pet doors. It alerts you if your pet tries to escape or if children open restricted doors, providing immediate notifications via the app for timely security measures.
Security for people and property
Integrated 4-in-1 sensor: Open/Close, Temperature, Humidity, Vibration
Install the sensor on drawers or cabinets to protect valuable items. It detects even the slightest vibration and alerts you via your mobile phone, ensuring you’re promptly notified of any attempted access or tampering with your secure areas.
What is Amazon Sidewalk
Amazon Sidewalk is a shared network that helps devices work better. You can use Amazon Sidewalk to simplify device setup, find lost items, and more. Amazon Sidewalk is optional and can be turned off at any time. It comes at no additional cost and has a capped data usage of 500 MB per month, per account.
Sidewalk Coverage
Please make sure you have Amazon Sidewalk coverage before installing the sensors!
To check the Amazon Sidewalk coverage in your neighborhood, please visit:
| Details | |
|---|---|
| Model Name | DW10 |
| Frequency | EU 863~870 MHz US 902~928 MHz |
| Protocol | Amazon Sidewalk |
| Antenna Gain | -2dBi Peak |
| Receive Sensitivity | -135dBm |
| Operation Temperature | 0 to 50°C |
| Environmental Rating | IP40 equivalent |
| Power Type | ½ AA Li-SOCl2 x 2pcs, 3.6V, 2400mAh |
| Battery Lifetime* | Up to 3 years |
| Average Current | 135mA maximum / 100uA minimum |
| Dimension | L:90 x D:28 x W:40mm |
| Weight | 69g |
| Sensor | (1) Hall-Effect sensor detection range: 1cm (2 )Temperature sensor: Accuracy: ± (1°C) (3) Humidity sensor: Accuracy: ± 5 % (4) Three-axis linear accelerometer |
| Type Approval | CE/FCC/IC |

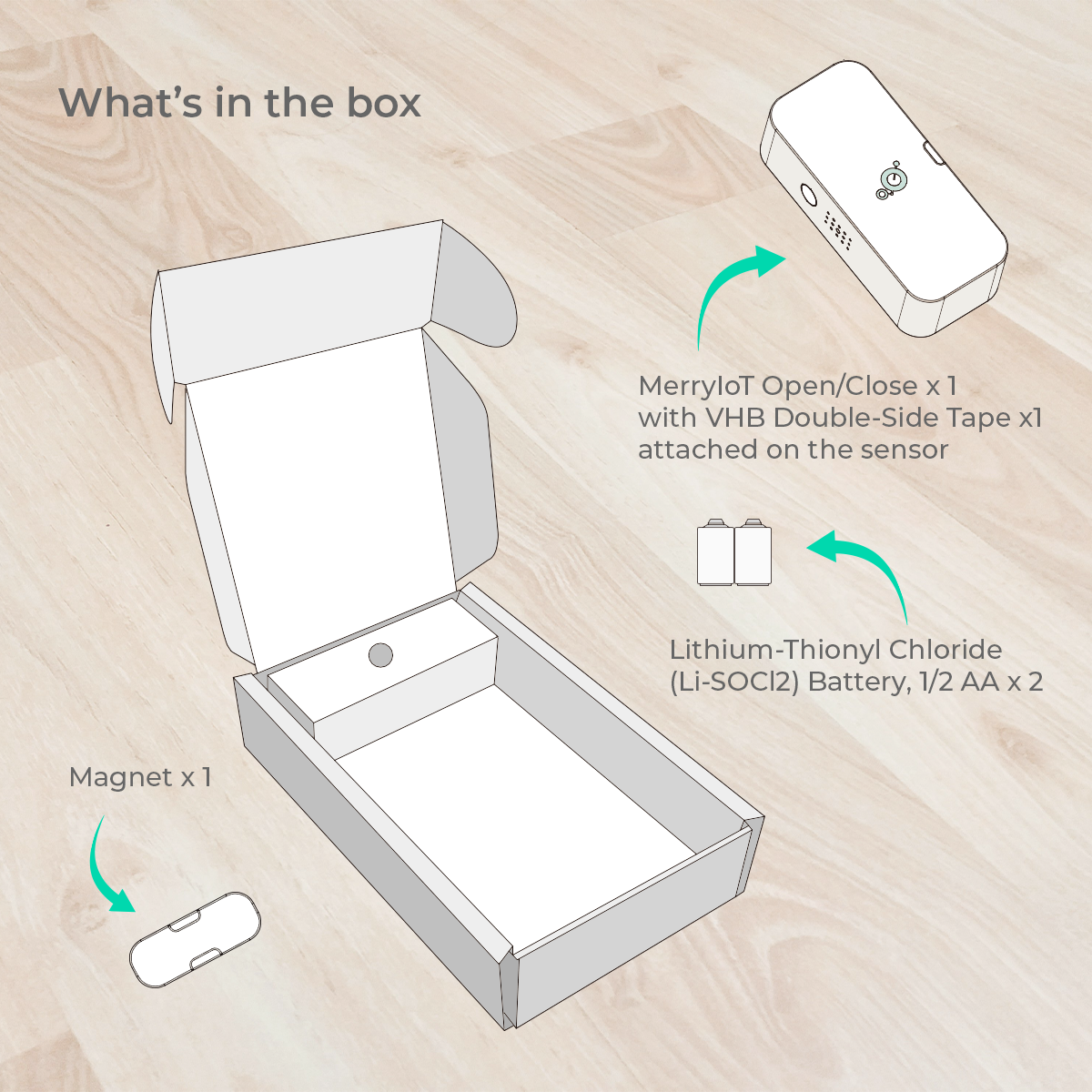

| Accessories | Magnet Size: 40mm x 15 mm x 10 mm |
| Remark | Battery life may vary based on uplink frequency and operating temperature. |
