Outdoor Micro Gateway V2
Next-Generation Gateway for Enhanced IoT Connectivity
Compliance to LoRaWAN® 1.0.4
Up to 16 concurrent channels
Downlink LBT
IP68 waterproof
Giga RJ45 port (10/100/1000Mbps)
Multiple backhauls with Ethernet, Cellular (4G/3G), and Wi-Fi
2 LoRa antenna connectors
1 GPS antenna connector (optional)
1 3G/4G antenna connector (optional)
1 Dual-SIM card slot (2FF, optional)
Multiple watchdogs for system monitor (internal/external WDG)

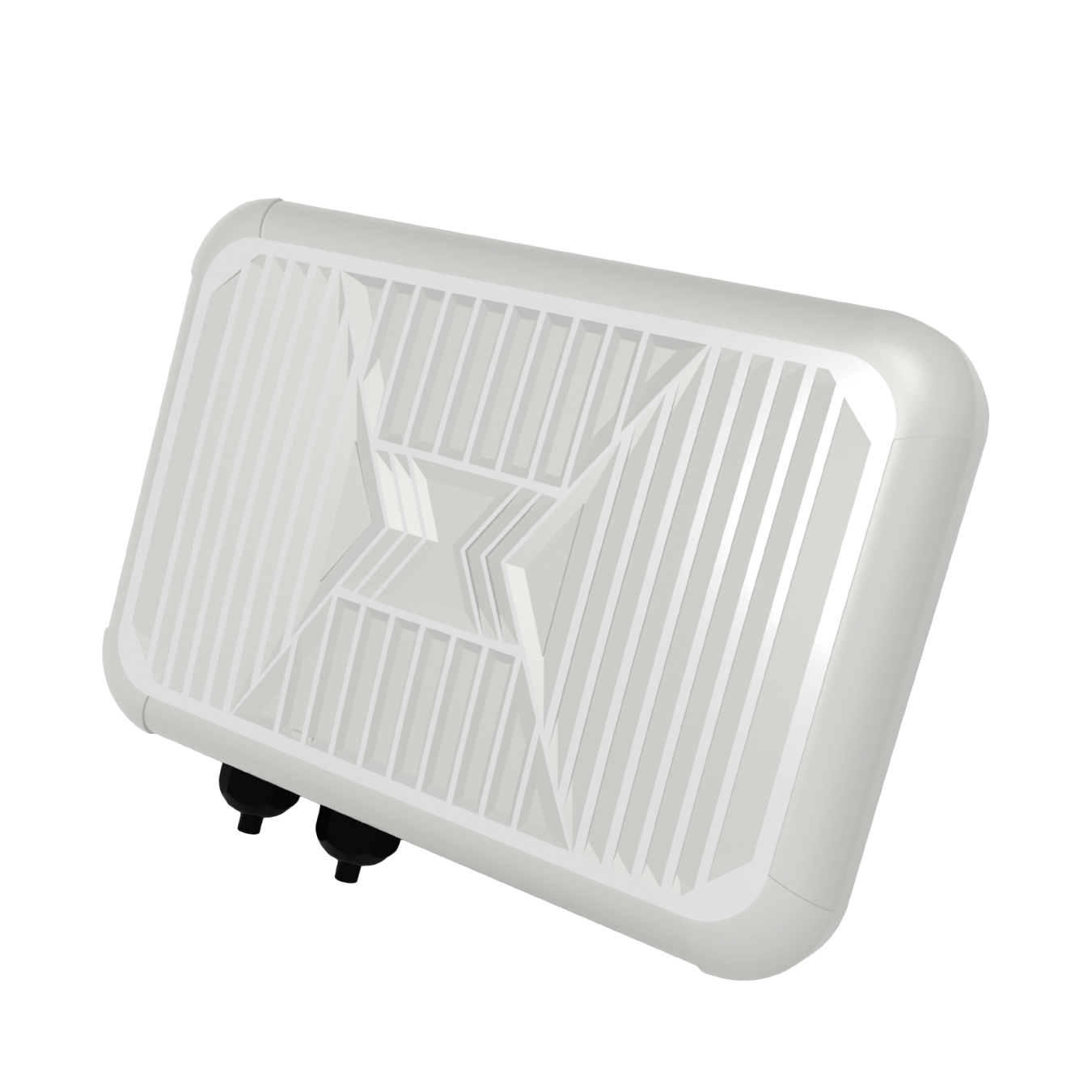

Outdoor Micro Gateway V2

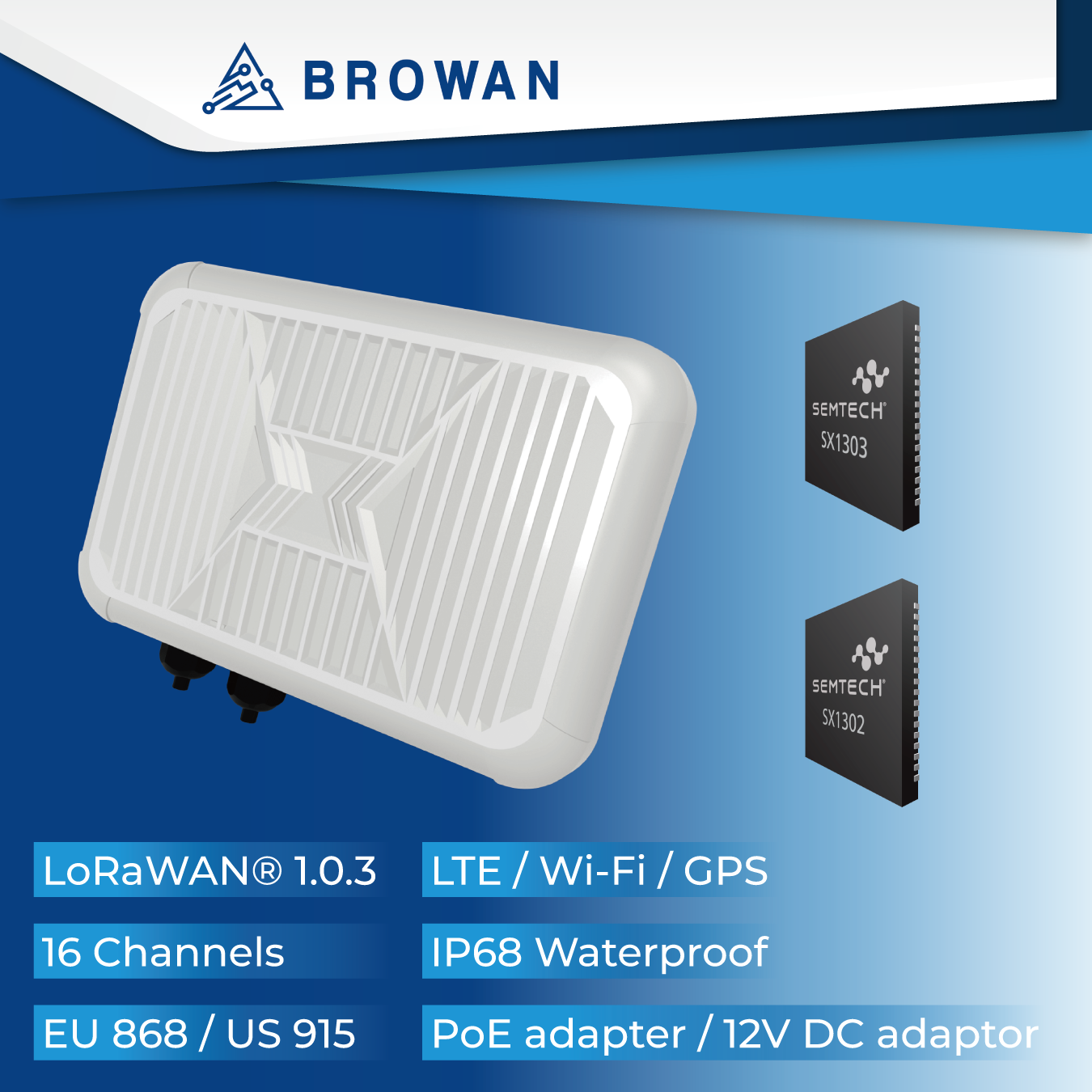

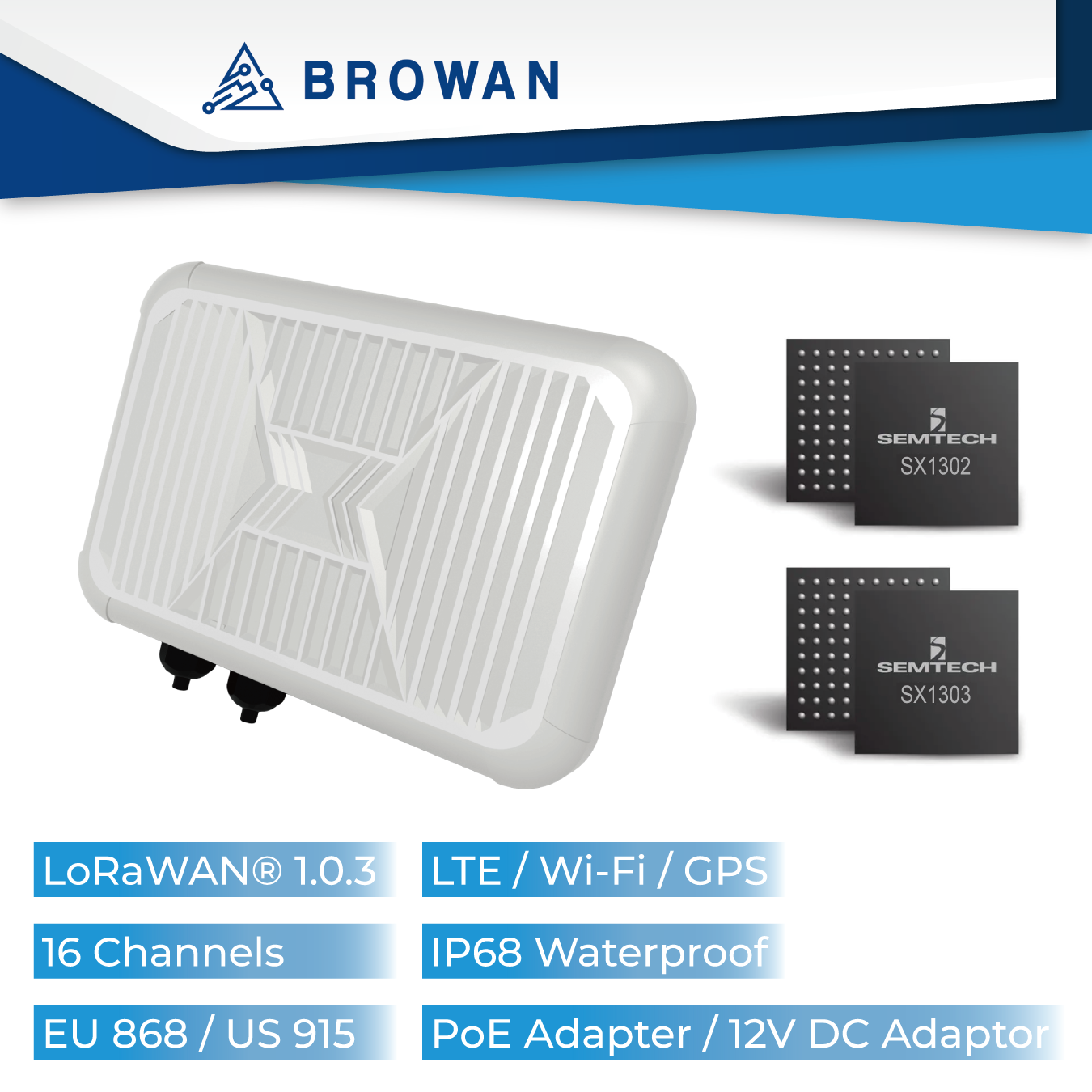

Browan's Outdoor Micro Gateway V2 is a new generation outdoor LoRaWAN® gateway, adopting SX1302/1303 LoRa chip up to 8/16 channels. With the robust, high-performance, and great coverage design, it provides quick deployment for your smart city, smart agriculture, and other smart IoT applications. This device supports built-in and multiple network servers and multiple backhauls. It is designed for multiple power supply inputs including solar power systems.
LoRaWAN® is a mark used under license from the LoRa Alliance®.
| Details | |
|---|---|
| Model Name | L0011 |
| Frequency | EU 862~870 MHz US 902~928 MHz |
| Number of Channels | Up to 16 Channels |
| WAN Protocol | LoRaWAN® |
| Modulation | Based on LoRaWAN® |
| Antenna Type | 2 x external LoRa antenna (optional 8CH/16CH) 1 x internal LTE antenna (optional for external) 1 x internal GPS antenna (optional for external) 1 x internal Wi-Fi antenna |
| Transmit RF Power | 0.5W (up to 27 dBm) |
| Receive Sensitivity | Down to -142 dBm |
| Operation Temperature | -40ºC ~ 60ºC |
| Storage Temperature | -40ºC ~ 90ºC |
| Environmental Rating | IP68 |
| Power Type | PoE adapter: 55VDC/0.6A via (Microsemi PD-9001GR 802.3at) Power adaptor: 12V DC input (support solar power) |
| Dimension | L: 270 x W:190 x H:85 mm |
| Weight | 2.1 kg |
| Interfaces | 1 x WAN RJ45 10/100/1000Mbps PoE port 1 x DC jack port 1 x Dual SIM card slot 4 x LED indicators 1 x Debug port 1 x Reset button |
| Security | AES 128 |
| Type Approval | FCC/CE (In progress) |
| Remark | “ * ” means the function is supported in different SKUs. The primary SKU has internal LTE, Wi-Fi, and GPS antenna. External LTE and GPS antenna will be based on customers' requests. For more details, please contact us directly. |
