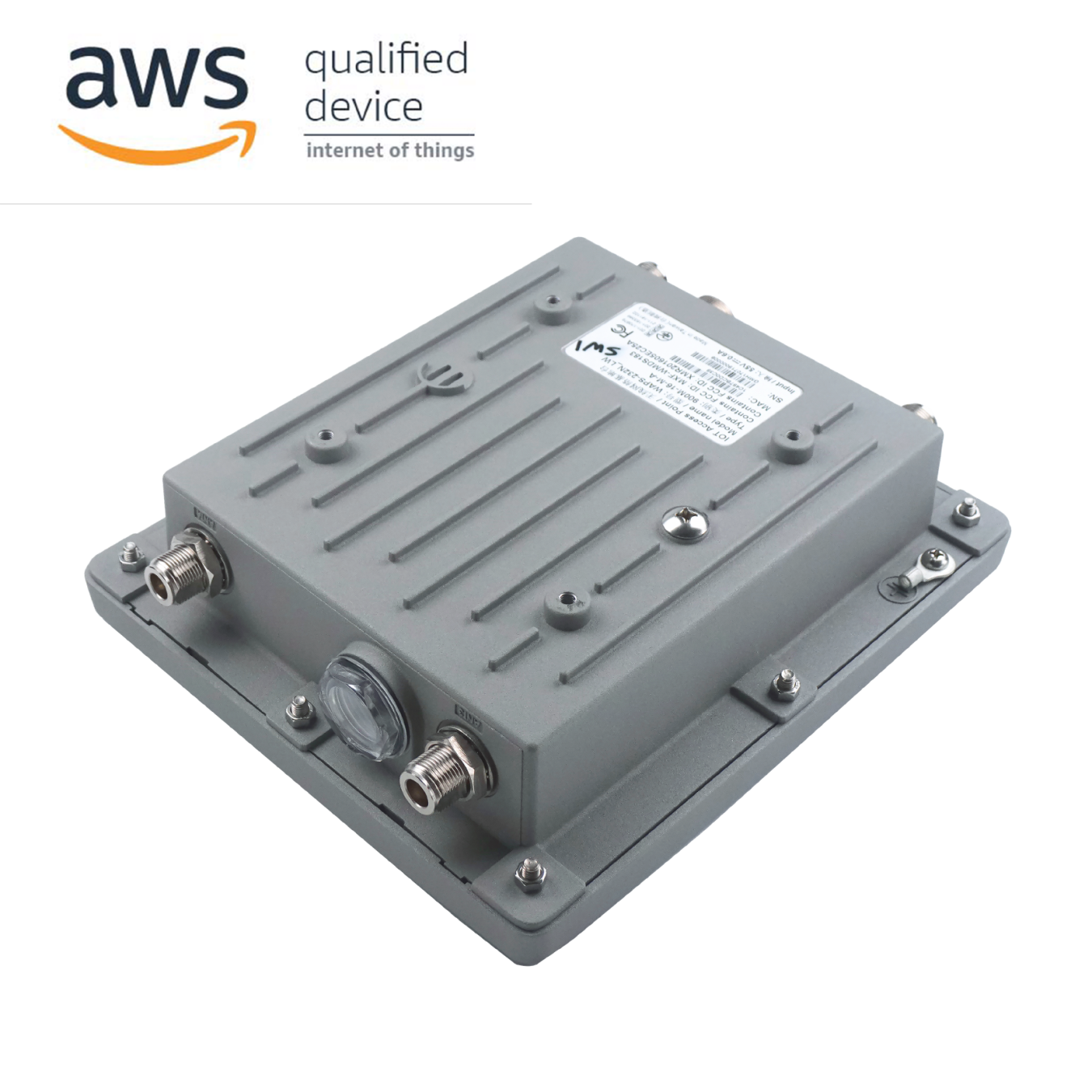

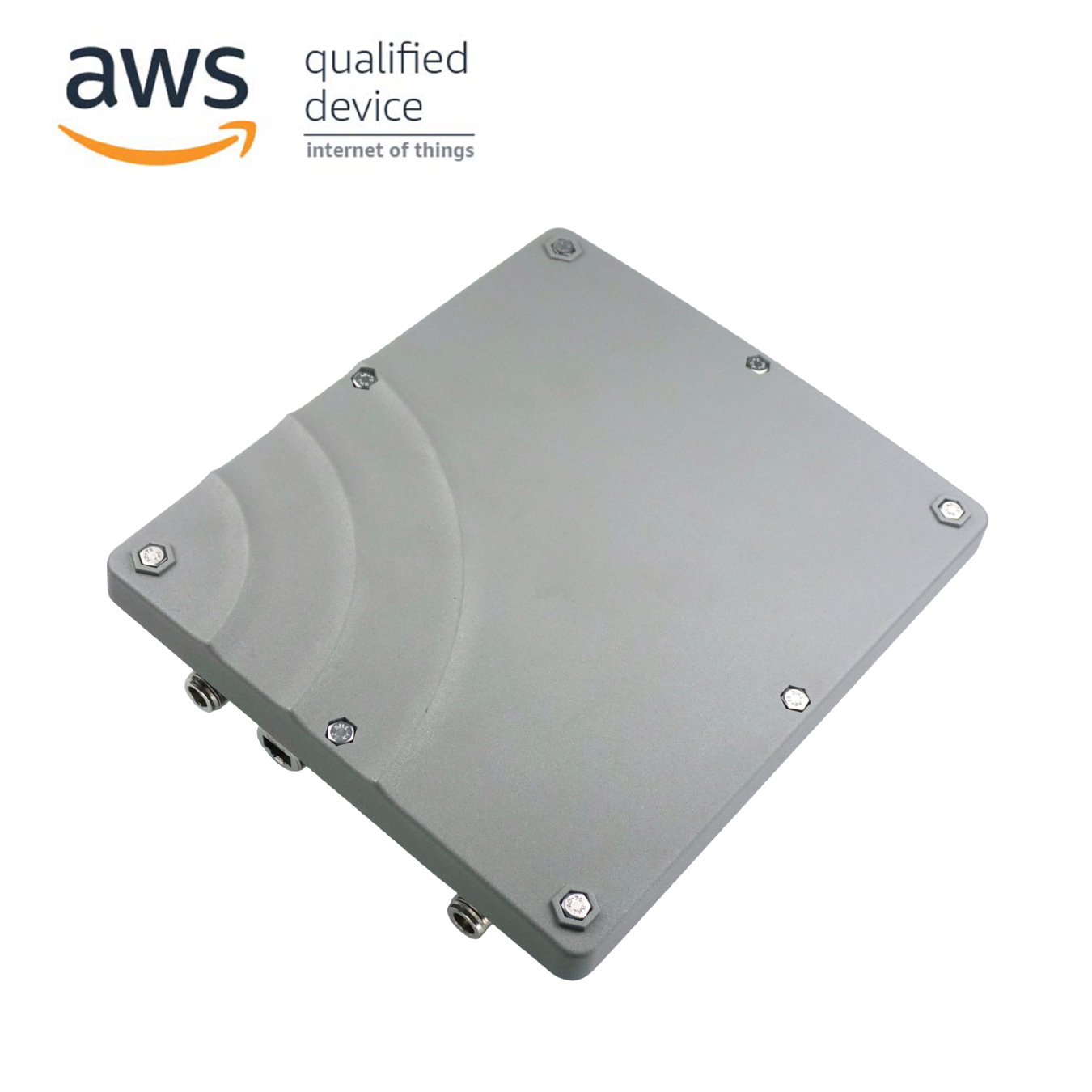

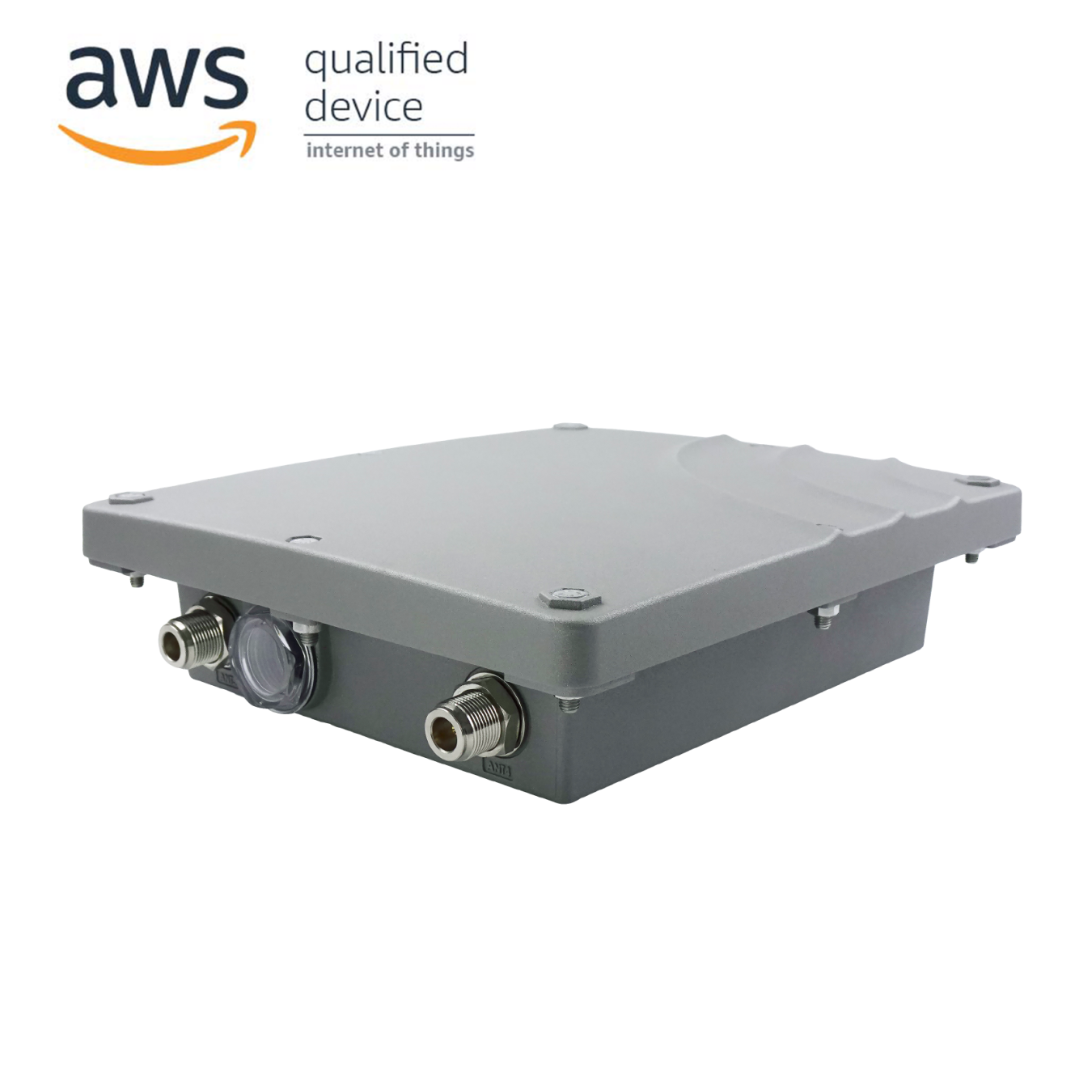

Outdoor Micro Gateway V1
Designed for Durability and Performance in Harsh Environments
Compliance to LoRaWAN® 1.0.3
3G/4G LTE backhaul supported
Optional support for a wide frequency range from 470MHz to 928MHz in different SKUs
Long-range over 15-kilometer radius
1 LAN port (10/100Mbps) with PoE
Support LoRa Basic Station & AWS IoT Core
Downlink LBT
Support background scan
Provides full redundancy coverage
IP67 waterproof
Support Ubuntu OS
Outdoor Micro Gateway V1
Browan has been instrumental in the development of LPWAN system solutions and is an early provider of LoRaWAN® protocol-based, end-to-end LPWAN solutions. The LoRaWAN® technology is designed to connect low-cost, battery-operated sensors over long distances in harsh environments that were previously too challenging or cost-prohibitive to connect. Because of its long-range, high penetration, and high sensitivity capabilities, it is a much more cost-effective way for service providers to deploy the LoRaWAN® network for sensor applications in the vertical market domain.
Browan's Outdoor Micro Gateway is specifically designed for wide-area smart city applications. Applications include, but are not limited to automatic meter readings, monitoring fault indicators, monitoring street lights, etc. Typical deployment uses a star network configuration similar to a mobile network base station.
AWS Qualified Device
LoRaWAN® is a mark used under license from the LoRa Alliance®.
Real Story from Our Customers
| Details | |
|---|---|
| Model Name | WAPS-232N |
| Frequency | EU 862~870 MHz US 902~928 MHz India 865~867 MHz AS 923 MHz CN 470~510 MHz AU 915~928 MHz |
| Number of Channels | Up to 16 Channels |
| WAN Protocol | LoRaWAN® |
| Modulation | Based on LoRaWAN® |
| RF Transceiver | SX1301 with SX1257 or SX1255 for CN-470 SKU |
| Antenna Type | External N-Type antenna |
| Transmit RF Power | 0.5W (up to 27 dBm) |
| Receive Sensitivity | Down to -142 dBm |
| Operation Temperature | -40ºC ~ 60ºC |
| Storage Temperature | -40ºC ~ 90ºC |
| Environmental Rating | IP67 |
| Power Type | PoE adapter: 55VDC/0.6A |
| Dimension | L:230 x W:200 x H:68 mm |
| Weight | 2.05 kg |
| Interfaces | 1 WAN RJ45 10/100Mbps 2 LoRa antenna connectors 1 GPS antenna connector 1 3G/4G antenna (optional) 1 SIM card slot (optional) |
| Security | AES 128 |
| Type Approval | FCC/CE/NCC/TELEC/RCM |
