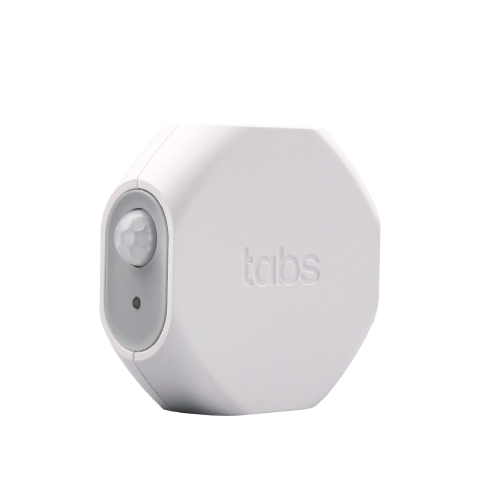

Desk Occupancy Sensor
Advanced Motion Detection for Smart Home and Office Environments
Compliance to LoRaWAN® 1.0.3
EU, US, and Asia frequencies supported
Dual Passive Infrared detectors and Fresnel Lens
7m detection range
IP50 equivalent
123°H x 93°V detection angle
Desk Occupancy Sensor
Leveraging LoRaWAN® connectivity, the Desk Occupancy Sensor is ideal for home monitoring and smart office deployments. Continuously monitoring its built-in Passive Infrared (PIR) sensor, the Desk Occupancy Sensor sends an uplink upon detecting activity and again when the room becomes vacant. Additionally, it transmits regular uplinks of the room's current occupancy every hour when unoccupied or every 10 minutes when occupied. Measuring just 50mm in size, this compact sensor is perfect for home surveillance and smart office setups.
LoRaWAN® is a mark used under license from the LoRa Alliance®.
| Details | |
|---|---|
| Model Name | TBMS100 |
| Frequency | EU 863~870 MHz US 902~928 MHz |
| Protocol | LoRaWAN® 1.0.3 |
| Transmit RF Power | US: +19dBm EU: +17dBm |
| Antenna Gain | -2dBi Peak, -5dBi Avg |
| Receive Sensitivity | -135dBm |
| Operation Temperature | 0 to 50°C |
| Environmental Rating | IP50 equivalent |
| Power Type | 1⁄2 AA Li-SOCl2 Battery x 1, 3.6V, 1200mAh |
| Battery Lifetime* | Up to 16 months |
| Average Current | 135mA maximum / 100uA minimum |
| Dimension | L:50 x D:20 x W:50mm |
| Weight | 30g without battery 40g with battery |
| Sensor | Dual Passive Infrared detectors: Detection Angle: 123°H x 93°V Detection Distance: 7 meters |
| Remark | Battery life may vary based on uplink frequency and operating temperature. |
