PIR Motion Sensor EBL - LoRaWAN® Version
Enhanced Security for Homes and Businesses with Real-Time Alerts
Compliance to LoRaWAN® 1.0.3
EU, and US frequencies support
Dual Passive Infrared detectors and Fresnel Lens
Battery-powered (2 standard AA alkaline batteries)
Support coverage test by pressing the test button
Notification for possible abnormal movement
Support both desk and room occupancy
Power on-and-play installation
Estimate battery lifetime: 3 years
PIR Motion Sensor EBL - LoRaWAN® Version

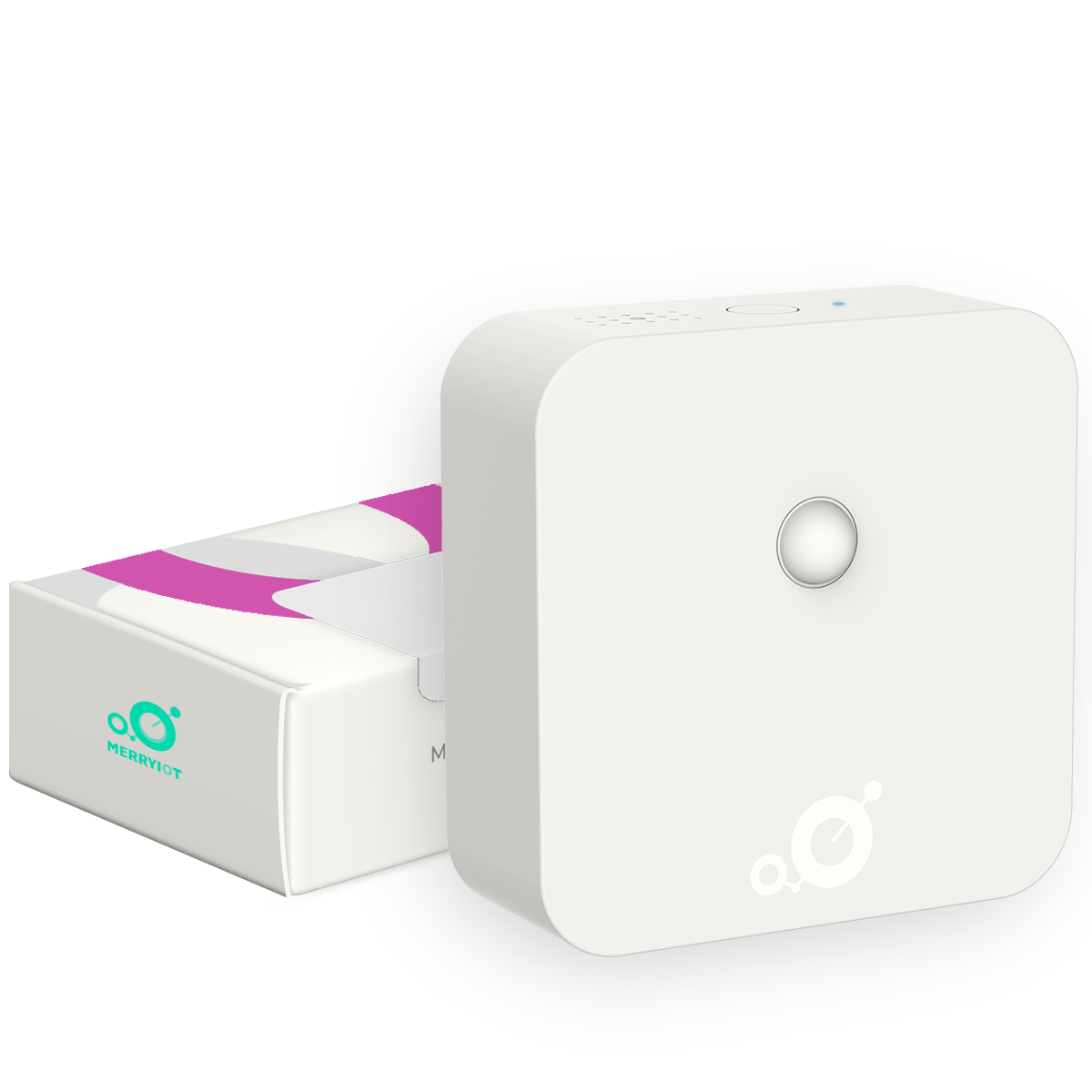

Introducing the MerryIoT Motion Detection sensor, designed to enhance your security and monitoring capabilities. Utilizing dual passive infrared detectors and LoRaWAN® 1.0.3 connectivity, this sensor detects movement with precision, making it ideal for home security, facility management, and occupancy monitoring in various spaces. Its easy installation, combined with a battery life of up to three years, ensures hassle-free operation. You’ll benefit from reliable connectivity and seamless integration with other smart devices. Stay informed and secure with MerryIoT!
Note: LoRaWAN® and Amazon Sidewalk connectivity are available in different SKUs. Please consult with us before making your purchase to ensure you select the right option for your needs.
Features
Instant Alarm of Abnormal Movement
Easily managed app
Easily managed app
An easy step to a safer home

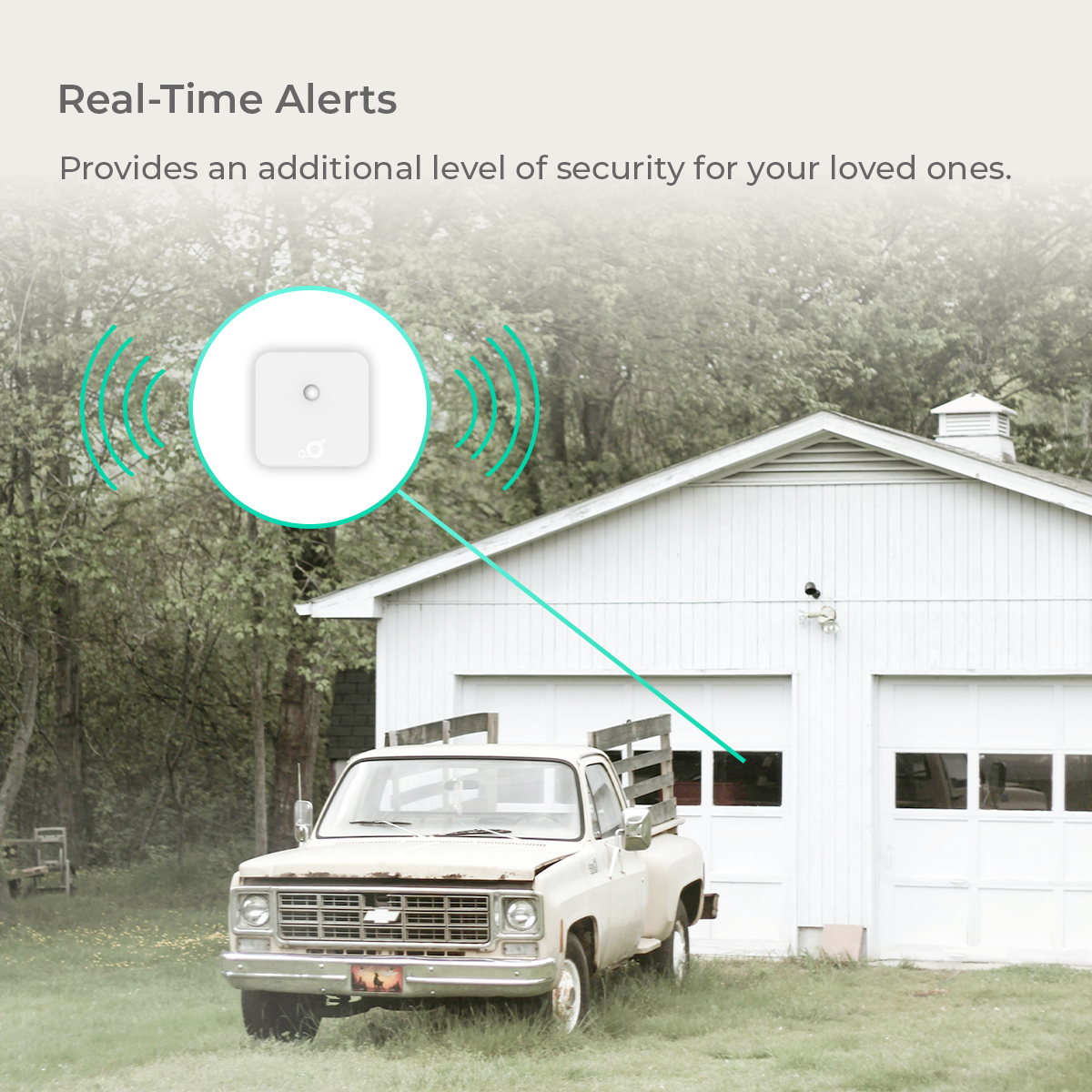

Secure your remote garages, driveways, sheds, and gates
MerryIoT Motion Detector uses PIR for precise detection of human presence and motion. With real-time status updates, it promptly alerts you in case of emergencies.
Integrated 4-in-1 Motion Detector
Desk and room occupancy detection supported
MerryIoT Motion Detector has a simple but effective mechanism to report occupancy: the unit sends a message when occupancy is detected, and then sends a message every 10 minutes while the space is occupied. When no motion/activity is detected the sensor will send back only hourly messages to save on battery life.
| Details | |
|---|---|
| Model Name | MS10 |
| Frequency | EU 863~870 MHz US 902~928 MHz |
| Protocol | LoRaWAN 1.0.3 |
| Antenna Gain | -2dBi Peak |
| Receive Sensitivity | -135dBm |
| Operation Temperature | 0 to 50°C |
| Environmental Rating | IP40 equivalent |
| Power Type | 1.5 V AA Alkaline x 2 pcs, 5400 mAh(75ΩCont. discharge) |
| Battery Lifetime* | Up to 3 years |
| Average Current | 135mA maximum / 100uA minimum |
| Dimension | L:70 x D:25 x W:70mm |
| Weight | 120 g |
| Sensor | (1) Dual Passive Infrared detector with Fresnel Lens Detection angle: 123°H x 93°V Detection range: 7 meters (2) Temperature sensor: Accuracy: ±(1°C) (3) Humidity sensor: Accuracy: ±5 % |
| Type Approval | CE/FCC/IC |
| Remark | Battery life may vary based on uplink frequency and operating temperature. |
