Rechargeable GPS Tracker
Versatile Tracking Device for Personal and Valuable Assets
Compliance to LoRaWAN® 1.0.3
EU, US, and Asia frequencies support
Portable size
Long battery life
IP64 equivalent
Rechargeable battery (4.2V LiPo 540mAh) with USB type C port
Rechargeable GPS Tracker

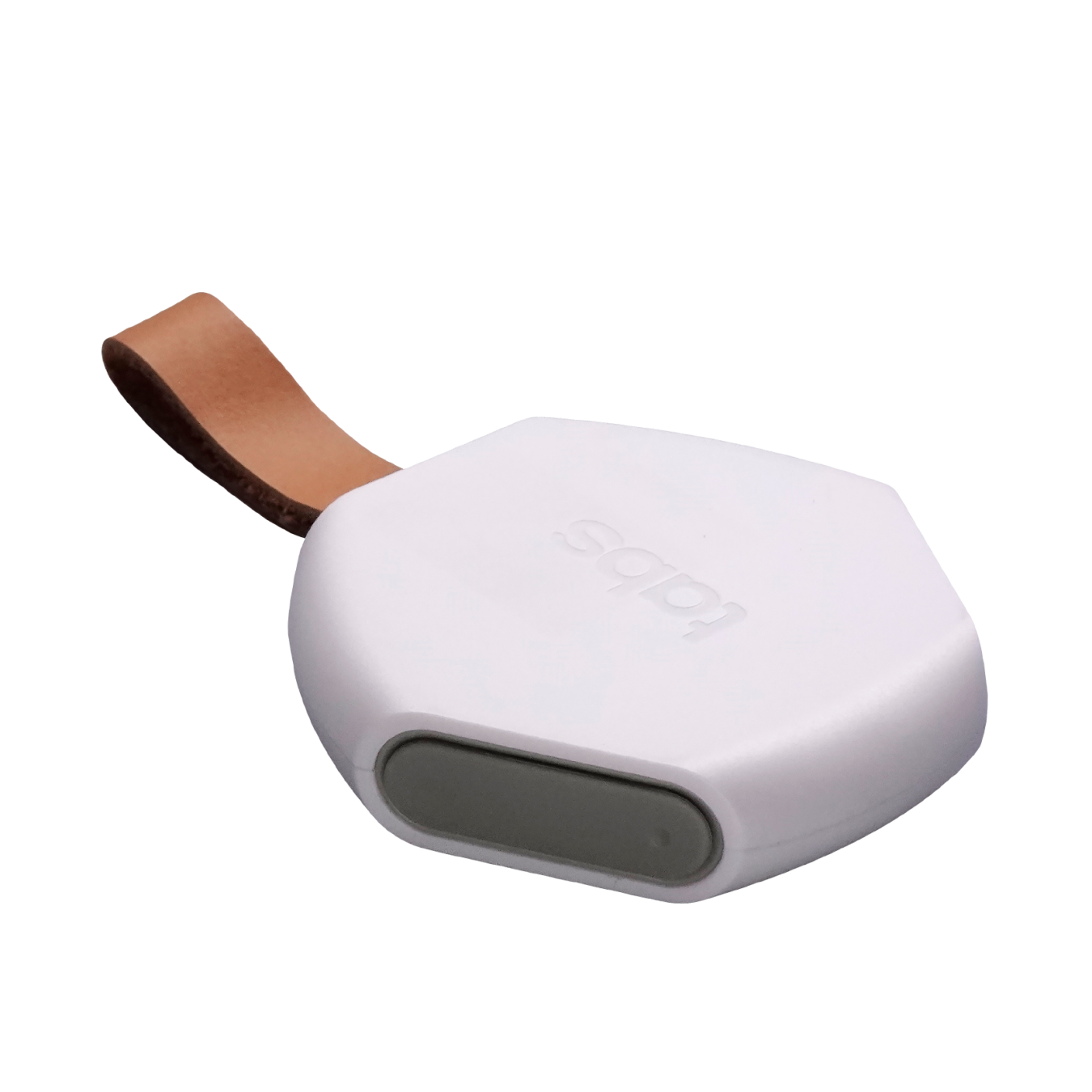

The Tabs Object Locator is a versatile tracking device designed for effective asset management, pet tracking, and personal item security. Featuring robust LoRaWAN® connectivity, it offers real-time location tracking using a GNSS receiver. The compact design ensures portability, while the integrated three-axis accelerometer enhances responsiveness to movement. With a rechargeable 540mAh LiPo battery and a USB-C port, users can enjoy long-lasting performance. Rated IP64 for dust and water resistance, this tracker is perfect for both indoor and outdoor use, providing peace of mind for your valuable possessions.
LoRaWAN® is a mark used under license from the LoRa Alliance®.
| Details | |
|---|---|
| Model Name | TBOL100 |
| Frequency | EU 863~870 MHz US 902~928 MHz AS1 920~923 MHz |
| Protocol | LoRaWAN® 1.0.3 |
| Transmit RF Power | +19dBm (Conducted) |
| Antenna Gain | -5dBi Peak, -8dBi Avg |
| Receive Sensitivity | -140dBm (Conducted) |
| Operation Temperature | 0 to 50°C |
| Environmental Rating | IP64 equivalent |
| Power Type | Rechargeable LiPo Battery, 4.2V, 540mAh |
| Average Current | 170mA maximum/ 5uA minimum |
| Dimension | L:50 x D:12 x W:50mm |
| Weight | 30g with battery |
| Sensor | (1) GNSS module (2) 3D Accelerometer, |
| Interfaces | 1x Push-button |
| Type Approval | CE/FCC |
| Remark | Battery life may vary based on uplink frequency and operating temperature. |
