Water Leak Sensor
Smart Water Leak Detection for Preventing Costly Damages
Compliance to LoRaWAN® 1.0.3
EU, and US frequencies support
Combined with temperature, humidity, and water leak detection functions
Detachable long cable for detection via micro-USB port
To avoid expensive repairs and loss of treasured items
Combined with temperature, humidity, and water leak detection sensors
0 to 50°C operation temperature range
Water Leak Sensor

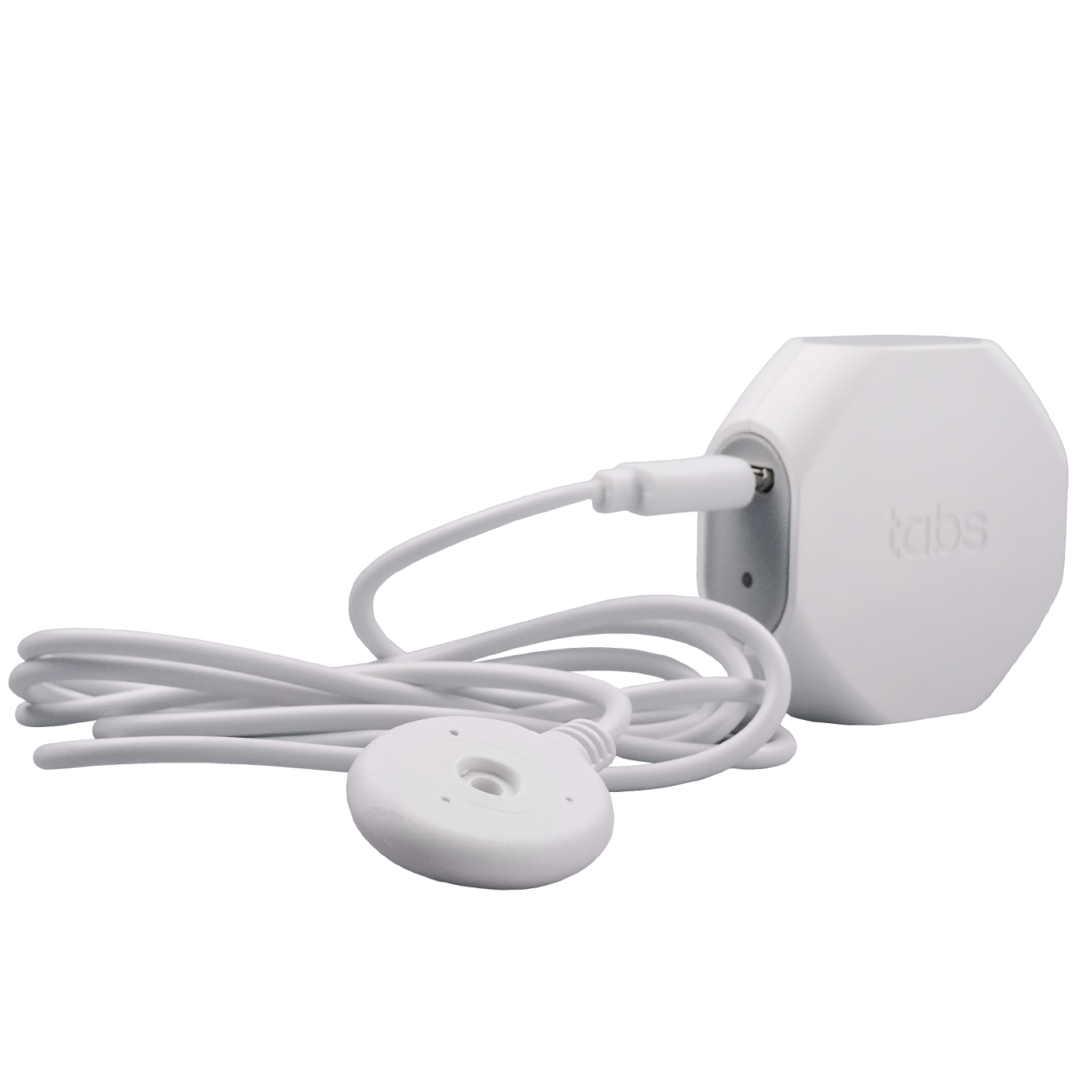

The Water Leak Sensor harnesses LoRaWAN® connectivity to deliver immediate alerts when leaks are detected, preventing costly repairs and safeguarding valuable items. Supporting both EU and US frequencies, it features integrated temperature and humidity sensors. The detachable long cable allows flexible detection, and a micro-USB port connects the probe. Operating efficiently between 0 to 50°C, this sensor offers reliable, long-term monitoring with a battery life of up to 16 months.
LoRaWAN® is a mark used under license from the LoRa Alliance®.
三張卡牌式訊息(圖片比例：415*275)
-
訊息標題(415*275)
圖片會依據內頁寬度改變，如需要限制圖片最大寬度請新增max-width屬性；
圖片建議尺寸：415*275px，這是文章區塊, 請輸入您所需要文章的文字, 文字基本上無限制字數但如想維持版面美觀請自行控制您所輸入文字的字數 -
訊息標題(415*275)
圖片會依據內頁寬度改變，如需要限制圖片最大寬度請新增max-width屬性；
圖片建議尺寸：415*275px，這是文章區塊, 請輸入您所需要文章的文字, 文字基本上無限制字數但如想維持版面美觀請自行控制您所輸入文字的字數 -
訊息標題(415*275)
圖片會依據內頁寬度改變，如需要限制圖片最大寬度請新增max-width屬性；
圖片建議尺寸：415*275px，這是文章區塊, 請輸入您所需要文章的文字, 文字基本上無限制字數但如想維持版面美觀請自行控制您所輸入文字的字數
| Details | |
|---|---|
| Model Name | TBWL100 |
| Frequency | EU 863~870 MHz US 902~928 MHz |
| Protocol | LoRaWAN® 1.0.3 |
| Transmit RF Power | US: +19dBm EU: +17dBm |
| Antenna Gain | -2dBi Peak, -5dBi Avg |
| Receive Sensitivity | -135dBm |
| Operation Temperature | 0 to 50°C |
| Environmental Rating | IP50 equivalent |
| Power Type | 1⁄2 AA Li-SOCl2 Battery x 1, 3.6V, 1200mAh |
| Battery Lifetime* | Up to 16 months |
| Average Current | 135mA maximum / 100uA minimum |
| Dimension | L:50 x D:20 x W:50mm |
| Weight | 30g without battery 40g with battery |
| Sensor | Water Sensing probe: Micro-USB connector Humidity Accuracy: +/- 5% Temperature Accuracy: +/- 1°C |
| Type Approval | CE/FCC |
| Remark | Battery life may vary based on uplink frequency and operating temperature. |
