Indoor PicoNext Gateway
Versatile IoT Gateway for Wide-Area Connectivity
Support Packet Forward/Basic Station Mode
Support Spectral Scan &Listen Before Talk(LBT)
Various Internet connections: Ethernet, Wi-Fi, or 3G/4G backhaul
Web UI for LoRa and network configuration
Support local firmware upgrade
CAN 2.0 design is reserved for future data communication purposes
Customizable SKU: (1) LTE-M back-haul (2) Wi-Fi back-haul with GPS
Customizable LTE-M 3G/4G module for different Country

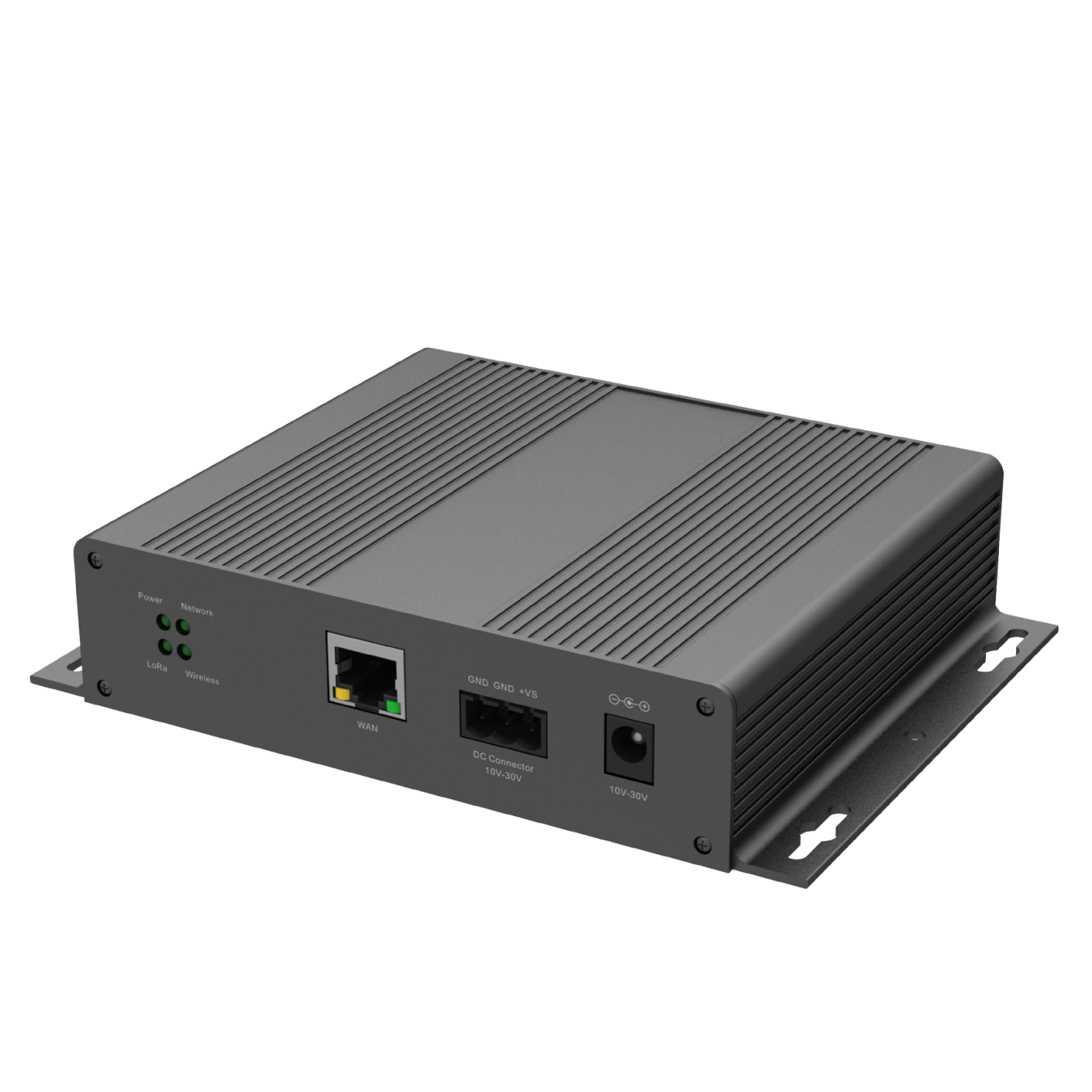

Indoor PicoNext Gateway
Browan has been instrumental in developing LPWAN system solutions and is an early provider of LoRaWAN® protocol-based, end-to-end LPWAN solutions. The LoRaWAN® technology is designed to connect low-cost, battery-operated sensors over long distances in harsh environments that were previously too challenging or cost-prohibitive to connect. Because of its long-range, high penetration, and high sensitivity capabilities, it is a much more cost-effective way for service providers to deploy the LoRaWAN® network for sensor applications in the vertical market domain.
Indoor PicoNext Gateway is specifically designed for wide-area IoT applications. Applications include, but are not limited to home security, automatic meter reading, monitoring fault indicators, monitoring street lights, etc. This gateway is very suitable for small businesses or private area use cases like parking spaces, exhibition centers, campuses, etc.
LoRaWAN® is a mark used under license from the LoRa Alliance®.
| Details | |
|---|---|
| Model Name | WSMS-155AGN |
| Frequency | EU 863~870 MHz US 902~928 MHz |
| Number of Channels | Up to 8 concurrent channels for LoRa transmission |
| Modulation | Based on LoRaWAN® |
| RF Transceiver | Semtech SX1302 |
| Antenna Type | 1 external LoRa antenna 1 external 4G antenna 1 external Wi-Fi antenna (*) 1 external GPS antenna (*) |
| Transmit RF Power | 0.5W (up to 27 dBm) |
| Receive Sensitivity | -140 dBm |
| Operation Temperature | -10℃~ 55℃ |
| Storage Temperature | -20℃~ 60℃ |
| Power Type | (1) Power Adaptor: DC 12 V/2 A (2) 3-Pin Connector Power supply: DC 10~30 V (3) Passive PoE: 10~30 V |
| Dimension | L:120 x W:136 x H:35mm |
| Weight | 0.40 kg |
| Interfaces | 1 WAN RJ45 10/100Mbps (w/ passive PoE capability) 1 Reset button 1 SIM card slot (2FF) 1 DC jack in 4 LED indicators 1 CAN 2.0 (*) |
| Other RF Connectivity | GPS GPS + GLONASS, L1C/Aband (optional for time-stamping)(*) |
| Backhaul | Wi-Fi 802.11b/g/n, 1x1, 2.4GHz (optional for backhaul)(*) 4G LTE Quectel PCIe module (LTE Cat 4 or Cat M1/NB2(*) |
| Security | AES 128 |
| Type Approval | FCC / IC / CE |
| Remark | “*” means the function is supported in different SKUs. The primary SKU is without Wi-Fi/GPS for the US/EU market. GPS and Wi-Fi functions will be based on customers’ requests. |
